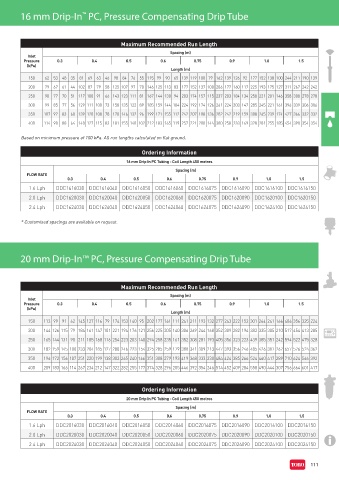

Page 121 - Toro Irrigation Product Catalogue August 2020
P. 121
16 mm Drip-In PC, Pressure Compensating Drip Tube
™
Maximum Recommended Run Length
Spacing (m)
Inlet
Pressure 0.3 0.4 0.5 0.6 0.75 0.9 1.0 1.5
(kPa)
Length (m)
150 62 53 48 35 81 69 63 46 98 84 76 55 115 99 90 65 139 119 108 79 162 139 126 92 177 152 138 100 244 211 190 139
200 79 67 61 44 102 87 79 58 125 107 97 70 146 125 113 83 177 152 137 100 206 177 160 117 225 193 175 127 311 267 242 242
250 90 77 70 51 117 100 91 66 143 123 111 81 167 144 130 94 203 174 157 115 237 203 184 134 258 221 201 146 358 308 278 278
300 99 85 77 56 129 111 100 73 158 135 122 89 185 159 144 104 224 192 174 126 261 224 203 147 285 245 221 161 396 339 306 306
350 107 92 83 60 139 120 108 78 170 146 132 96 199 171 155 112 242 207 188 136 282 242 219 159 308 265 239 174 427 366 332 332
400 114 98 88 64 148 127 115 83 181 155 140 102 212 183 165 119 257 221 200 144 300 258 233 169 328 281 255 185 454 390 354 354
Based on minimum pressure of 100 kPa. All run lengths calculated on flat ground.
Ordering Information
16 mm Drip In PC Tubing - Coil Length 450 metres
Spacing (m)
FLOW RATE
0.3 0.4 0.5 0.6 0.75 0.9 1.0 1.5
1.6 Lph DDC1616030 DDC1616040 DDC1616050 DDC1616060 DDC1616075 DDC1616090 DDC1616100 DDC1616150
2.0 Lph DDC1620030 DDC1620040 DDC1620050 DDC1620060 DDC1620075 DDC1620090 DDC1620100 DDC1620150
2.4 Lph DDC1624030 DDC1624040 DDC1624050 DDC1624060 DDC1624075 DDC1624090 DDC1624100 DDC1624150
* Customised spacings are available on request.
20 mm Drip-In™ PC, Pressure Compensating Drip Tube
Maximum Recommended Run Length
Spacing (m)
Inlet
Pressure 0.3 0.4 0.5 0.6 0.75 0.9 1.0 1.5
(kPa)
Length (m)
150 113 99 91 62 145 127 116 79 174 153 140 95 202 177 161 111 241 211 193 132 277 243 222 152 301 264 241 166 406 356 325 224
200 144 126 115 79 184 161 147 101 221 194 176 121 256 225 205 140 306 269 244 168 352 309 282 194 382 335 305 210 517 454 413 285
250 165 144 131 90 211 185 168 116 254 223 203 140 294 258 235 161 352 308 281 193 405 356 323 223 439 385 351 242 594 522 475 328
300 182 159 145 100 233 204 185 127 280 246 223 154 325 285 259 179 388 341 309 213 447 393 356 246 485 426 387 267 657 576 524 362
350 196 172 156 107 251 220 199 138 302 265 240 166 351 308 279 193 419 368 333 230 484 424 385 266 524 460 417 289 710 624 566 392
400 209 183 166 114 267 234 212 147 322 282 255 177 374 328 296 205 446 392 354 246 514 452 409 284 558 490 444 307 756 664 601 417
Ordering Information
20 mm Drip In PC Tubing - Coil Length 450 metres
Spacing (m)
FLOW RATE
0.3 0.4 0.5 0.6 0.75 0.9 1.0 1.5
1.6 Lph DDC2016030 DDC2016040 DDC2016050 DDC2016060 DDC2016075 DDC2016090 DDC2016100 DDC2016150
2.0 Lph DDC2020030 DDC2020040 DDC2020050 DDC2020060 DDC2020075 DDC2020090 DDC2020100 DDC2020150
2.4 Lph DDC2024030 DDC2024040 DDC2024050 DDC2024060 DDC2024075 DDC2024090 DDC2024100 DDC2024150
111
