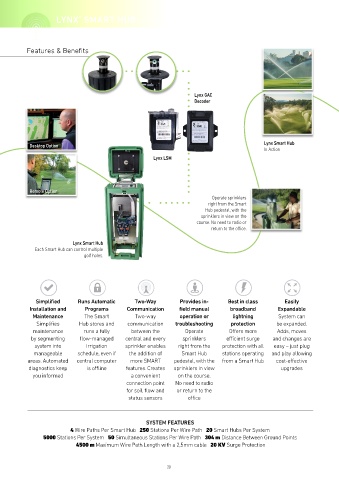

LY N X ® S M A R T HUB
LYNX® SMART HUB

Features & Benefits

Lynx GAC
Decoder

Desktop Option Lynx Smart Hub
In Action
Lynx LSM

Remote Option
Operate sprinklers
right from the Smart
Hub pedestal, with the
sprinklers in view on the
course. No need to radio or
return to the office.

Lynx Smart Hub
Each Smart Hub can control multiple
golf holes.

Simplified Runs Automatic Two-Way Provides in- Best in class Easily
Installation and Programs Communication field manual broadband Expandable
Maintenance The Smart Two-way operation or lightning System can
Simplifies Hub stores and communication troubleshooting protection be expanded.
maintenance runs a fully between the Operate Offers more Adds, moves
by segmenting flow-managed central and every sprinklers efficient surge and changes are
system into irrigation sprinkler enables right from the protection with all easy – just plug
manageable schedule, even if the addition of Smart Hub stations operating and play allowing
areas. Automated central computer more SMART pedestal, with the from a Smart Hub cost-effective
diagnostics keep is offline features. Creates sprinklers in view upgrades
you informed a convenient on the course.
connection point No need to radio
for soil, flow and or return to the
status sensors office

SYSTEM FEATURES
4 Wire Paths Per Smart Hub 250 Stations Per Wire Path 20 Smart Hubs Per System
5000 Stations Per System 50 Simultaneous Stations Per Wire Path 304 m Distance Between Ground Points
4500 m Maximum Wire Path Length with a 2,5mm cable 20 KV Surge Protection
