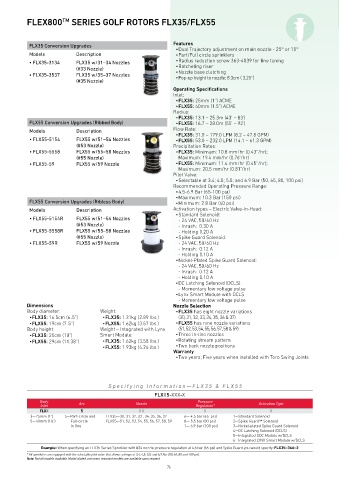

FLEX800 SERIES GOLF ROTORS FLX35/FLX55
TM

FLX35 Conversion Upgrades Features
• Dual Trajectory adjustment on main nozzle - 25° or 15°
Models Description • Part/Full circle sprinklers
• FLX35-3134 FLX35 w/31–34 Nozzles • Radius reduction screw 363-4839 for fine tuning
(#33 Nozzle) • Ratcheting riser
• FLX35-3537 FLX35 w/35–37 Nozzles • Nozzle base clutching
• Pop-up height to nozzle: 8.3cm ( 3.25”)
(#35 Nozzle)
Operating Specifications
Inlet:
• FLX35: 25mm (1”) ACME
• FLX55: 40mm (1.5”) ACME
Radius:
• FLX35: 13.1 – 25.3m (43’ – 83’)
FLX55 Conversion Upgrades (Ribbed Body) • FLX55: 16.7 – 28.0m (55’ – 92’)
Models Description Flow Rate:
• FLX35: 31.0 – 179.0 LPM (8.2 – 47.8 GPM)
• FLX55-5154 FLX55 w/51–54 Nozzles • FLX55: 53.0 – 232.0 LPM (14.1 – 61.3 GPM)
(#53 Nozzle) Precipitation Rates:
• FLX55-5558 FLX55 w/55–58 Nozzles • FLX35: Minimum: 10.8 mm/hr (0.43”/hr);
(#55 Nozzle) Maximum: 19.4 mm/hr (0.76”/hr)
• FLX55-59 FLX55 w/59 Nozzle • FLX55: Minimum: 11.4 mm/hr (0.45”/hr);
Maximum: 20.5 mm/hr (0.81”/hr)
Pilot Valve:
• Selectable at 3.4; 4.5; 5.5; and 6.9 Bar (50, 65, 80, 100 psi)
Recommended Operating Pressure Range:
• 4.5-6.9 Bar (65-100 psi)
• Maximum: 10.3 Bar (150 psi)
FLX55 Conversion Upgrades (Ribless Body) • Minimum: 2.8 Bar (40 psi)
Models Description Activation types – Electric Valve-in-Head:
• Standard Solenoid:
• FLX55-5154R FLX55 w/51–54 Nozzles - 24 VAC, 50/60 Hz
(#53 Nozzle) - Inrush: 0.30 A
• FLX55-5558R FLX55 w/55–58 Nozzles - Holding 0.20 A
(#55 Nozzle) • Spike Guard Solenoid:
• FLX55-59R FLX55 w/59 Nozzle - 24 VAC, 50/60 Hz
- Inrush: 0.12 A
- Holding 0.10 A
• Nickel-Plated Spike Guard Solenoid:
- 24 VAC, 50/60 Hz
- Inrush: 0.12 A
- Holding 0.10 A
• DC Latching Solenoid (DCLS)
- Momentary low voltage pulse
• Lynx Smart Module with DCLS
- Momentary low voltage pulse
Dimensions Nozzle Selection
Body diameter: Weight: • FLX35 has eight nozzle variations
• FLX35: 16.5cm (6.5”) • FLX35: 1.31kg (2.89 lbs.) (30, 31, 32, 33, 34, 35, 36 & 37)
• FLX55: 19cm (7.5”) • FLX55: 1.62kg (3.57 lbs.) • FLX55 has nine nozzle variations
Body height: Weight – Integrated with Lynx (51, 52, 53, 54, 55, 56, 57, 58 & 59)
• FLX35: 25cm (10”) Smart Module: • Three in-line nozzles
• FLX55: 29cm (11.38”) • FLX35: 1.62kg (3.58 lbs.) • Rotating stream pattern
• FLX55: 1.93kg (4.26 lbs.) • Two back nozzle positions
Warranty
• Two years; Five years when installed with Toro Swing Joints

Specifying Information—FLX35 & FLX55
FLXX5-XXX-X
Body Arc Nozzle Pressure Activation Type
Inlet Regulation*
FLXX 5 X X X X
3—25mm (1") 5—Part-circle and FLX35—30, 31, 32, 33 , 34, 35, 36, 37 6— 4,5 bar (65 psi) 1—Standard Solenoid
5—40mm (1 ⁄2") Full-circle FLX55—51, 52, 53, 54, 55, 56, 57, 58, 59 8— 5,5 bar (80 psi) 2—Spike Guard™ Solenoid
1
In One 1— 6,9 bar (100 psi) 3—Nickel-plated Spike Guard Solenoid
4—DC Latching Solenoid (DCLS)
5—Integrated GDC Module w/DCLS
6—Integrated LYNX Smart Module w/DCLS
Example: When specifying an FLX35 Series Sprinkler with #34 nozzle, pressure regulation at 4,5 bar (65 psi) and Spike Guard you would specify: FLX35–346–2
* All sprinklers are equipped with the selectable pilot valve that allows settings at 3,4; 4,5; 5,5; and 6,9 Bar (50, 65, 80 and 100 psi).
Note: Not all models available. Nickel-plated, corrosion-resistant models are available upon request.
