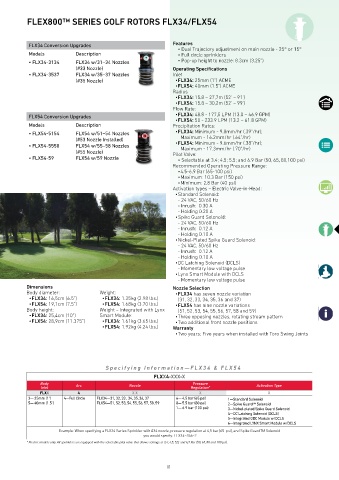

FLEX800™ SERIES GOLF ROTORS FLX34/FLX54

FLX34 Conversion Upgrades Features
• Dual Trajectory adjustment on main nozzle - 25° or 15°
Models Description • Full circle sprinklers
• FLX34-3134 FLX34 w/31–34 Nozzles • Pop-up height to nozzle: 8.3cm (3.25”)
(#33 Nozzle) Operating Specifications
• FLX34-3537 FLX34 w/35–37 Nozzles Inlet
(#35 Nozzle) • FLX34: 25mm (1”) ACME
• FLX54: 40mm (1.5”) ACME
Radius
• FLX34: 15.8 – 27,7m (52’ – 91’)
• FLX54: 15.8 – 30,2m (52’ – 99’)
Flow Rate:
FLX54 Conversion Upgrades • FLX34: 48.8 - 177,5 LPM (13.0 – 46.9 GPM)
• FLX54: 50 - 233.9 LPM (13.2 – 61.8 GPM)
Models Description Precipitation Rates:
• FLX54-5154 FLX54 w/51–54 Nozzles • FLX34: Minimum - 9.8mm/hr (.39"/hr);
Maximum - 16.2mm/hr (.64"/hr)
(#53 Nozzle Installed) • FLX54: Minimum - 9.6mm/hr (.38"/hr);
• FLX54-5558 FLX54 w/55–58 Nozzles Maximum - 17.3mm/hr (.70"/hr)
(#55 Nozzle) Pilot Valve:
• FLX54-59 FLX54 w/59 Nozzle • Selectable at 3.4; 4.5; 5.5; and 6.9 Bar (50, 65, 80,100 psi)
Recommended Operating Pressure Range:
• 4.5-6.9 Bar (65-100 psi)
• Maximum: 10.3 Bar (150 psi)
• Minimum: 2.8 Bar (40 psi)
Activation types – Electric Valve-in-Head:
• Standard Solenoid:
- 24 VAC, 50/60 Hz
- Inrush: 0.30 A
- Holding 0.20 A
• Spike Guard Solenoid:
- 24 VAC, 50/60 Hz
- Inrush: 0.12 A
- Holding 0.10 A
• Nickel-Plated Spike Guard Solenoid:
- 24 VAC, 50/60 Hz
- Inrush: 0.12 A
- Holding 0.10 A
• DC Latching Solenoid (DCLS)
- Momentary low voltage pulse
• Lynx Smart Module with DCLS
- Momentary low voltage pulse
Dimensions Nozzle Selection
Body diameter: Weight: • FLX34 has seven nozzle variation
• FLX34: 16,5cm (6.5”) • FLX34: 1.35kg (2.98 lbs.) (31, 32, 33, 34, 35, 36 and 37)
• FLX54: 19,1cm (7.5”) • FLX54: 1.68kg (3.70 lbs.) • FLX54 has nine nozzle variations
Body height: Weight – Integrated with Lynx (51, 52, 53, 54, 55, 56, 57, 58 and 59)
• FLX34: 25,4cm (10”) Smart Module: • Three opposing nozzles, rotating stream pattern
• FLX54: 28,9cm (11.375”) • FLX34: 1.61kg (3.65 lbs.) • Two additional front nozzle positions
• FLX54: 1.92kg (4.24 lbs.) Warranty
• Two years; Five years when installed with Toro Swing Joints

Specifying Information—FLX34 & FLX54
FLXX4-XXX-X
Body Arc Nozzle Pressure Activation Type
Inlet Regulation*
FLXX 4 X X X X
3— 25mm (1") 4—Full Circle FLX34—31, 32, 33 , 34, 35, 36, 37 6— 4.5 bar (65 psi) 1— Standard Solenoid
5— 40mm (1.5") FLX54—51, 52, 53, 54, 55, 56, 57, 58, 59 8— 5.5 bar (80 psi) 2— Spike Guard™ Solenoid
1— 6.9 bar (100 psi) 3—Nickel-plated Spike Guard Solenoid
4—DC Latching Solenoid (DCLS)
5—Integrated GDC Module w/DCLS
6—Integrated LYNX Smart Module w/DCLS
Example: When specifying a FLX34 Series Sprinkler with #34 nozzle, pressure regulation at 4,5 bar (65 psi), and Spike GuardTM Solenoid
you would specify: FLX34–346-2
* Electric models only. All sprinklers are equipped with the selectable pilot valve that allows settings at 3,4; 4,5; 5,5; and 6,9 Bar (50, 65, 80 and 100 psi).
Note: Not all models available. Nickel-plated, corrosion-resistant models are available upon request.
