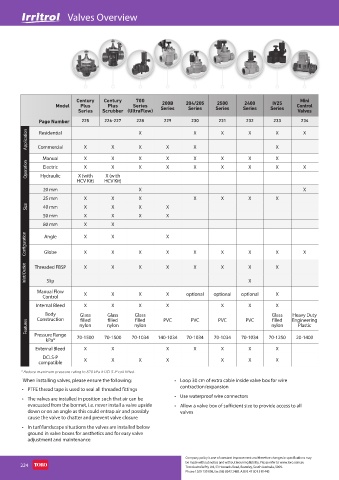

R Valves Overview

















                            Century   Century    700                                                      Mini
                     Model   Plus      Plus     Series    200B    204/205    2500      2400      IV25    Control
                            Series   Scrubber (UltraFlow)  Series  Series    Series   Series    Series    Valves
               Page Number    225     226-227    228       229      230       231      232       233       234
          Application  Commercial  X    X         X        X         X         X        X         X         X
               Residential

                                                                     X
                                                                                                  X
                                                  X
                Manual         X        X         X        X         X         X        X         X
          Operation  Electric  X        X         X        X         X         X        X         X         X
                            X (with
                                      X (with
               Hydraulic
                            HCV Kit)  HCV Kit)
                20 mm                             X                                                         X
                25 mm          X        X         X                  X         X        X         X
          Size  40 mm          X        X         X        X

                50 mm          X        X         X        X
                80 mm          X        X

          Configuration  Angle  X       X         X        X         X         X        X         X         X


                                                           X
                               X
                 Globe
                                        X
          Inlet/Outlet  Threaded FBSP  X  X       X        X         X         X        X         X
                                                                                        X
                 Slip
              Manual Flow      X        X         X        X      optional  optional  optional    X
                Control
              Internal Bleed   X        X         X        X                   X        X         X
                 Body        Glass     Glass    Glass                                           Glass   Heavy Duty
              Construction   filled    filled   filled    PVC       PVC       PVC      PVC       filled   Engineering
          Features           nylon     nylon    nylon                                           nylon     Plastic

             Pressure Range
                 kPa*       70-1500   70-1500  70-1034  140-1034   70-1034  70-1034   70-1034  70-1250   20-1400
             External Bleed    X        X                  X         X         X        X         X
                DCLS-P
               compatible      X        X         X        X                   X        X         X
        * Reduce maximum pressure rating to 820 kPa if DCLS-P coil fitted.
         When installing valves, please ensure the following:  •  Loop 30 cm of extra cable inside valve box for wire
                                                                contraction/expansion
         •  PTFE thread tape is used to seal all threaded fittings
                                                              •  Use waterproof wire connectors
         •  The valves are installed in position such that air can be
           evacuated from the bonnet, i.e. never install a valve upside   •  Allow a valve box of sufficient size to provide access to all
           down or on an angle as this could entrap air and possibly   valves
           cause the valve to chatter and prevent valve closure
         •  In turf/landscape situations the valves are installed below
           ground in valve boxes for aesthetics and for easy valve
           adjustment and maintenance
