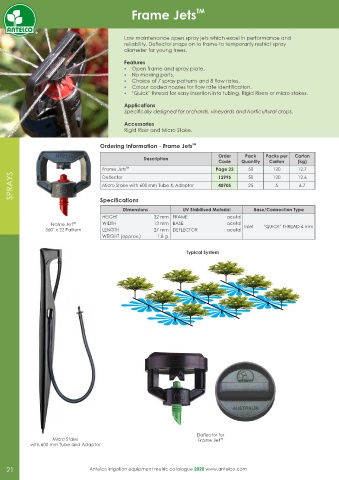

Page 24 - Antelco Metric Catalogue 310320_FINAL.cdr
P. 24

Frame Jets             TM




                                             Low maintenance open spray jets which excel in performance and
                                             reliability. Deector snaps on to frame to temporarily restrict spray
                                             diameter for young trees.

                                             Features
                                             Ÿ  Open frame and spray plate.
                                             Ÿ  No moving parts.
                                             Ÿ  Choice of 7 spray patterns and 8 ow rates.
                                             Ÿ  Colour coded nozzles for ow rate identication.
                                             Ÿ  ‘Quick’ thread for easy insertion into tubing, Rigid Risers or micro stakes.

                                             Applications
                                             Specically designed for orchards, vineyards and horticultural crops.

                                             Accessories
                                             Rigid Riser and Micro Stake.


                                    Ordering Information - Frame Jets TM
                                                                              Order    Pack   Packs per   Carton
                                                   Description
                                                                              Code    Quantity  Carton    (kg)
                                     Frame Jets TM                           Page 22    50       120      12.7
     SPRAYS                          Deector                                 12995     50       120      12.6
                                                                                                          6.7
                                                                                                  5
                                                                              40705
                                                                                        25
                                     Micro Stake with 600 mm Tube & Adaptor
                                    Specications
                                            Dimensions           UV Stabilised Material   Base/Connection Type
                                     HEIGHT               32 mm FRAME                 acetal
                   Frame Jet TM      WIDTH                13 mm BASE                  acetal  Inlet        ‘QUICK’ THREAD 4 mm
                    o
                 360  x 22 Pattern   LENGTH               27 mm DEFLECTOR             acetal
                                     WEIGHT (approx.)         1.8 g

                                                                   Typical System






































                                                                      Deector for
                   Micro Stake                                         Frame Jet TM
            with 600 mm Tube and Adaptor
