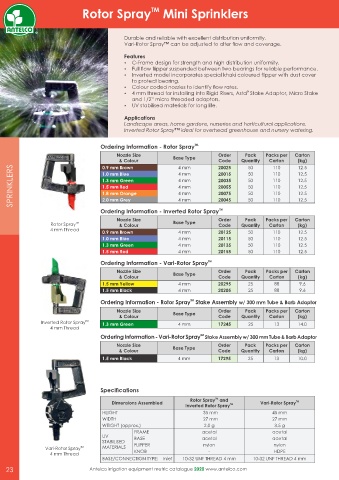

Page 26 - Antelco Metric Catalogue 310320_FINAL.cdr

TM
Rotor Spray Mini Sprinklers

Durable and reliable with excellent distribution uniformity.
Vari-Rotor Spray™ can be adjusted to alter ow and coverage.

Features
Ÿ C-Frame design for strength and high distribution uniformity.
Ÿ Full ow ipper suspended between two bearings for reliable performance.
Ÿ Inverted model incorporates special khaki coloured ipper with dust cover
to protect bearing.
Ÿ Colour coded nozzles to identify ow rates.
®
Ÿ 4 mm thread for installing into Rigid Risers, Asta Stake Adaptor, Micro Stake
and 1/2” micro threaded adaptors.
Ÿ UV stabilised materials for long life.
Applications
Landscape areas, home gardens, nurseries and horticultural applications.
Inverted Rotor Spray™ ideal for overhead greenhouse and nursery watering.

Ordering Information - Rotor Spray TM
Nozzle Size Base Type Order Pack Packs per Carton
Code
& Colour 4 mm 20025 Quantity Carton (kg)
SPRINKLERS 1.0 mm Blue 4 mm 20015 50 110 12.5
12.5
50
110
0.9 mm Brown
20035
4 mm
12.5
50
110
1.3 mm Green
12.5
4 mm
50
20055
110
1.5 mm Red
4 mm
50
1.8 mm Orange
110
20075
12.5
4 mm
2.0 mm Grey
TM
Ordering Information - Inverted Rotor Spray 20045 50 110 12.5
Nozzle Size Order Pack Packs per Carton
Rotor Spray TM & Colour Base Type Code Quantity Carton (kg)
4 mm Thread
0.9 mm Brown 4 mm 20125 50 110 12.5
1.0 mm Blue 4 mm 20115 50 110 12.5
1.3 mm Green 4 mm 20135 50 110 12.5
1.5 mm Red 4 mm 20155 50 110 12.5
Ordering Information - Vari-Rotor Spray TM
Nozzle Size Order Pack Packs per Carton
& Colour Base Type Code Quantity Carton (kg)
1.5 mm Yellow 4 mm 20295 25 88 9.6
1.5 mm Black 4 mm 20205 25 88 9.6
TM
Ordering Information - Rotor Spray Stake Assembly w/ 300 mm Tube & Barb Adaptor
Nozzle Size Base Type Order Pack Packs per Carton
& Colour Code Quantity Carton (kg)
Inverted Rotor Spray TM 1.3 mm Green 4 mm 17245 25 13 14.0
4 mm Thread
TM
Ordering Information - Vari-Rotor Spray Stake Assembly w/ 300 mm Tube & Barb Adaptor
Nozzle Size Base Type Order Pack Packs per Carton
& Colour Code Quantity Carton (kg)
1.5 mm Black 4 mm 17295 25 13 10.0
Specications
TM
Rotor Spray and
Dimensions Assembled Vari-Rotor Spray TM
Inverted Rotor Spray TM
HEIGHT 35 mm 45 mm
WIDTH 27 mm 27 mm
WEIGHT (approx.) 2.0 g 3.5 g
FRAME acetal acetal
UV BASE acetal acetal
STABILISED
Vari-Rotor Spray TM MATERIALS FLIPPER nylon nylon
HDPE
KNOB
-
4 mm Thread
BASE/CONNECTION TYPE: Inlet 10-32 UNF THREAD 4 mm 10-32 UNF THREAD 4 mm
23 Antelco irrigation equipment metric catalogue 2020 www.antelco.com
