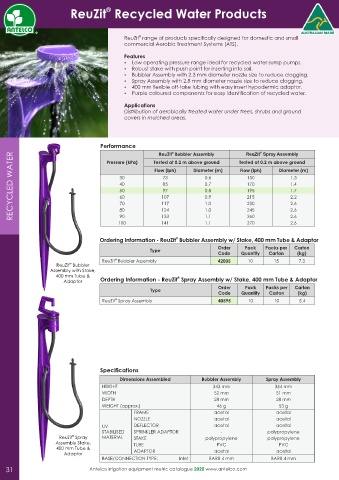

Page 34 - Antelco Metric Catalogue 310320_FINAL.cdr

®
ReuZit Recycled Water Products

®
ReuZit range of products specically designed for domestic and small
commercial Aerobic Treatment Systems (ATS).
Features
Ÿ Low operating pressure range ideal for recycled water sump pumps.
Ÿ Robust stake with push point for inserting into soil.
Ÿ Bubbler Assembly with 2.3 mm diameter nozzle size to reduce clogging.
Ÿ Spray Assembly with 2.8 mm diameter nozzle size to reduce clogging.
Ÿ 400 mm exible off-take tubing with easy insert hypodermic adaptor.
Ÿ Purple coloured components for easy identication of recycled water.

Applications
Distribution of aerobically treated water under trees, shrubs and ground
covers in mulched areas.

Performance Tested at 0.2 m above ground Tested at 0.2 m above ground
RECYCLED WATER 30 Flow (lph) Diameter (m) Flow (lph) Diameter (m)
®
®
ReuZit Bubbler Assembly
ReuZit Spray Assembly
Pressure (kPa)
0.6
1.3
150
73
0.7
40
85
170
1.4
97
0.8
50
1.7
195
107
2.2
60
215
0.9
117
230
2.6
70
1.0
80
260
133
1.1
2.6
90
270
141
100 124 1.0 245 2.6
1.1
2.6
®
Ordering Information - ReuZit Bubbler Assembly w/ Stake, 400 mm Tube & Adaptor
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
®
ReuZit Bubbler Assembly 42005 10 15 7.3
®
ReuZit Bubbler
Assembly with Stake,
400 mm Tube & ®
Adaptor Ordering Information - ReuZit Spray Assembly w/ Stake, 400 mm Tube & Adaptor
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
®
ReuZit Spray Assembly 40595 10 10 5.4
Specications
Dimensions Assembled Bubbler Assembly Spray Assembly
HEIGHT 343 mm 364 mm
WIDTH 52 mm 51 mm
DEPTH 28 mm 28 mm
WEIGHT (approx.) 46 g 53 g
FRAME acetal acetal
NOZZLE acetal acetal
UV DEFLECTOR acetal acetal
STABILISED SPRINKLER ADAPTOR - polypropylene
®
ReuZit Spray MATERIAL STAKE polypropylene polypropylene
Assembly Stake, TUBE PVC PVC
400 mm Tube &
Adaptor ADAPTOR acetal acetal
BASE/CONNECTION TYPE: Inlet BARB 4 mm BARB 4 mm
31 Antelco irrigation equipment metric catalogue 2020 www.antelco.com
