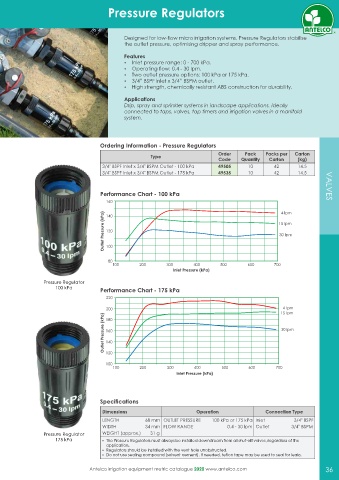

Page 39 - Antelco Metric Catalogue 310320_FINAL.cdr

Pressure Regulators

Designed for low-ow micro irrigation systems. Pressure Regulators stabilise
the outlet pressure, optimising dripper and spray performance.

Features
Ÿ Inlet pressure range: 0 - 700 kPa.
Ÿ Operating ow: 0.4 - 30 lpm.
Ÿ Two outlet pressure options: 100 kPa or 175 kPa.
Ÿ 3/4” BSPF inlet x 3/4” BSPM outlet.
Ÿ High strength, chemically resistant ABS construction for durability.
Applications
Drip, spray and sprinkler systems in landscape applications. Ideally
connected to taps, valves, tap timers and irrigation valves in a manifold
system.

Ordering Information - Pressure Regulators
Order Pack Packs per Carton
Type
Code Quantity Carton (kg)
3/4" BSPF Inlet x 3/4" BSPM Outlet - 100 kPa 49505 10 42 14.5
3/4" BSPF Inlet x 3/4" BSPM Outlet - 175 kPa 49535 10 42 14.5

Performance Chart - 100 kPa VALVES
160 4 lpm
Outlet Pressure (kPa) 120 15 lpm
140

30 lpm

100

80
100 200 300 400 500 600 700
Inlet Pressure (kPa)

Pressure Regulator
100 kPa
Performance Chart - 175 kPa
220
200 4 lpm
15 lpm
Outlet Pressure (kPa) 160 30 lpm
180

140
120
100
100 200 300 400 500 600 700
Inlet Pressure (kPa)

Specications
Dimensions Operation Connection Type
LENGTH 68 mm OUTLET PRESSURE 100 kPa or 175 kPa Inlet 3/4" BSPF
WIDTH 34 mm FLOW RANGE 0.4 - 30 lpm Outlet 3/4" BSPM
Pressure Regulator WEIGHT (approx.) 31 g
175 kPa Ÿ The Pressure Regulators must always be installed downstream from all shut-off valves, regardless of the
application.
Ÿ Regulators should be installed with the vent hole unobstructed.
Ÿ Do not use sealing compound (solvent cement). If needed, tef lon tape may be used to seal for leaks.

Antelco irrigation equipment metric catalogue 2020 www.antelco.com 36
