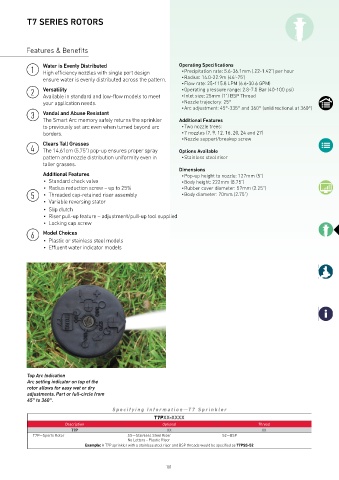

T7 SERIES ROTORS

Features & Benefits

1 Water is Evenly Distributed Operating Specifications
• Precipitation rate: 5.6-36.1mm (.22-1.42") per hour
High efficiency nozzles with single port design
ensure water is evenly distributed across the pattern. • Radius: 14.0-22.9m (46'-75')
• Flow rate: 25-115.8 LPM (6.6-30.6 GPM)
2 Versatility • Operating pressure range: 2.8-7.0 Bar (40-100 psi)
Available in standard and low-flow models to meet
• Inlet size: 25mm (1”) BSP Thread
your application needs. • Nozzle trajectory: 25°
• Arc adjustment: 45°-335° and 360° (unidirectional at 360°)
3 Vandal and Abuse Resistant
The Smart Arc memory safely returns the sprinkler Additional Features
to previously set arc even when turned beyond arc • Two nozzle trees:
borders. • 7 nozzles (7, 9, 12, 16, 20, 24 and 27)
• Nozzle support/breakup screw
Clears Tall Grasses
4 The 14.61cm (5.75”) pop-up ensures proper spray Options Available
pattern and nozzle distribution uniformity even in • Stainless steel riser
taller grasses.
Dimensions
Additional Features • Pop-up height to nozzle: 127mm (5”)
• Standard check valve • Body height: 222mm (8.75”)
• Radius reduction screw – up to 25% • Rubber cover diameter: 57mm (2.25”)
5 • Threaded cap-retained riser assembly • Body diameter: 70mm (2.75”)
• Variable reversing stator
• Slip clutch
• Riser pull-up feature – adjustment/pull-up tool supplied
• Locking cap screw
6 Model Choices
• Plastic or stainless steel models
• Effluent water indicator models

Top Arc Indication
Arc setting indicator on top of the
rotor allows for easy wet or dry
adjustments. Part or full-circle from
45° to 360°.
Specifying Information—T7 Sprinkler
T7PXX-XXXX
Description Optional Thread
T7P XX XX
T7P—Sports Rotor SS—Stainless Steel Riser 52—BSP
No Letters - Plastic Riser
Example: A T7P sprinkler with a stainless steel riser and BSP threads would be specified as T7PSS-52
