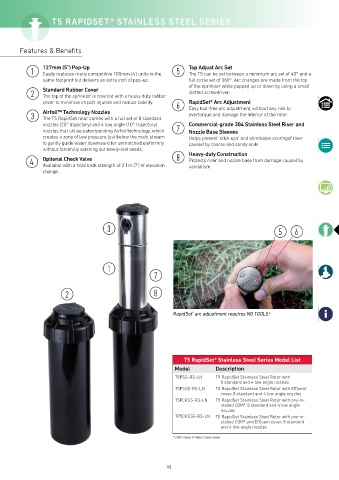

T5 RAPIDSET® STAINLESS STEEL SERIES

Features & Benefits

1 127mm (5”) Pop-Up 5 Top Adjust Arc Set
Easily replaces many competitive 100mm (4’) units in the
The T5 can be set between a minimum arc set of 40° and a
same footprint but delivers an extra inch of pop-up. full circle set of 360°. Arc changes are made from the top
of the sprinkler while popped up or down by using a small
Standard Rubber Cover
2 The top of the sprinkler is covered with a heavy duty rubber slotted screwdriver.
cover to minimise impact injuries and reduce liability. RapidSet® Arc Adjustment
6 Easy tool-free arc adjustment, without any risk to
3 Airfoil™ Technology Nozzles overtorque and damage the interior of the rotor.
The T5 RapidSet rotor comes with a full set of 8 standard
nozzles (25° trajectory) and 4 low angle (10° trajectory) Commercial-grade 304 Stainless Steel Riser and
nozzles that utilise patentpending Airfoil technology, which 7 Nozzle Base Sleeves
creates a zone of low pressure just below the main stream Helps prevent ‘stick ups’ and eliminates scoringof riser
to gently guide water downward for unmatched uniformity caused by coarse and sandy soils
without forcefully washing out newly-laid seeds. Heavy-duty Construction
4 Optional Check Valve 8 Protects riser and nozzle base from damage caused by
Available with a hold back strength of 2.1m (7’) of elevation
vandalism
change.

3 5 6

1
7

2 8

RapidSet arc adjustment requires NO TOOLS!
®

T5 RapidSet® Stainless Steel Series Model List
Model Description
T5PSS-RS-LN T5 RapidSet Stainless Steel Rotor with
8 standard and 4 low angle nozzles
T5PSSE-RS-LN T5 RapidSet Stainless Steel Rotor with Effluent
cover, 8 standard and 4 low angle nozzles
T5PCKSS-RS-LN T5 RapidSet Stainless Steel Rotor with pre-in-
stalled COM*, 8 standard and 4 low angle
nozzles
TP5CKSSE-RS-LN T5 RapidSet Stainless Steel Rotor with pre-in-
stalled COM* and Effluent cover, 8 standard
and 4 low angle nozzles
* COM: Check‑O‑Matic Check Valve

105
