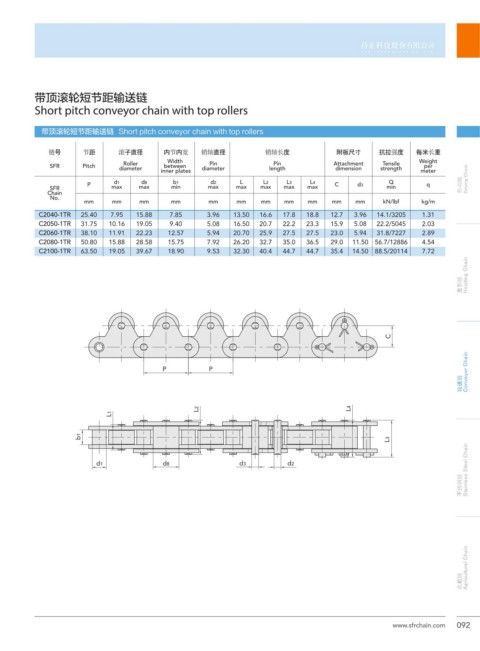

Page 109 - SFR Chain Catalogue v.3.1

带顶滚轮短节距输送链
Short pitch conveyor chain with top rollers

带顶滚轮短节距输送链 Short pitch conveyor chain with top rollers

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ڸϰԄժ ॆঘ఼؇ ૄ૜Ӊᇗ
Width
Tensile
Roller
Pin
Pin
between
SFR Pitch diameter inner plates diameter length Attachment strength Weight
per
dimension
meter
P d1 d8 b1 d2 L L2 L3 L4 C d3 Q q Ԯ׮৽ ͑ͿͶ΃ͶͻʹḤ͐͵ͮͶͻ
SFR max max min max max max max max min
Chain
No.
mm mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
C2040-1TR 25.40 7.95 15.88 7.85 3.96 13.50 16.6 17.8 18.8 12.7 3.96 14.1/3205 1.31
C2050-1TR 31.75 10.16 19.05 9.40 5.08 16.50 20.7 22.2 23.3 15.9 5.08 22.2/5045 2.03
C2060-1TR 38.10 11.91 22.23 12.57 5.94 20.70 25.9 27.5 27.5 23.0 5.94 31.8/7227 2.89
C2080-1TR 50.80 15.88 28.58 15.75 7.92 26.20 32.7 35.0 36.5 29.0 11.50 56.7/12886 4.54
C2100-1TR 63.50 19.05 39.67 18.90 9.53 32.30 40.4 44.7 44.7 35.4 14.50 88.5/20114 7.72
ှႄ৽Ḥ ͕ͼͶ΀΁ͶͻʹḤ͐͵ͮͶͻ

C

P P ͐ͼͻ΃ͲΆͼͿḤ͐͵ͮͶͻ
ൻෂ৽

L2 L4
L1

b1 L3

d1 d8 d3 d2 ͠΁ͮͶͻ͹Ͳ΀΀Ḥ͠΁ͲͲ͹Ḥ͐͵ͮͶͻ
҂ྭۑ৽

͎ʹͿͶͰ΂͹΁΂Ϳͮ͹Ḥ͐͵ͮͶͻ

୪ࠏ৽
