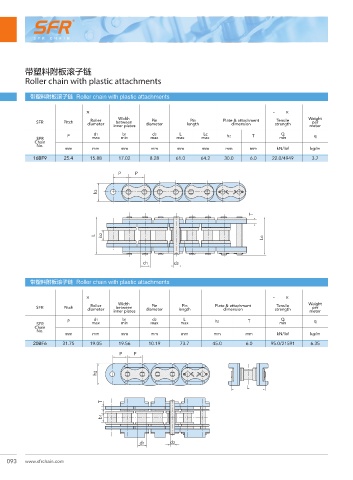

Page 110 - SFR Chain Catalogue v.3.1

带塑料附板滚子链
Roller chain with plastic attachments

带塑料附板滚子链 Roller chain with plastic attachments

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰaڸϰԄժ ॆঘ఼؇ ૄ૜Ӊᇗ
Width
Roller
Tensile
Pin
Pin
SFR Pitch diameter inner plates diameter length Plate & attachment strength Weight
per
between
dimension
meter
P d1 b1 d2 L Lc h2 T Q q
SFR max min max max max min
Chain
No.
mm mm mm mm mm mm mm mm kN/lbf kg/m
16BF9 25.4 15.88 17.02 8.28 61.0 64.2 30.0 6.0 22.0/4949 3.7
P P
h2

T

L b2 Lc

d1 d2

带塑料附板滚子链 Roller chain with plastic attachments

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰaڸϰԄժ ॆঘ఼؇ ૄ૜Ӊᇗ
Width
Pin
Tensile
Roller
Pin
per
SFR Pitch diameter inner plates diameter length Plate & attachment strength Weight
between
dimension
meter
P d1 b1 d2 L h2 T Q q
SFR max min max max min
Chain
No.
mm mm mm mm mm mm mm kN/lbf kg/m
20BF6 31.75 19.05 19.56 10.19 73.7 45.0 6.0 95.0/21591 6.35
P P
h2
L

T

b1

d1 d2
