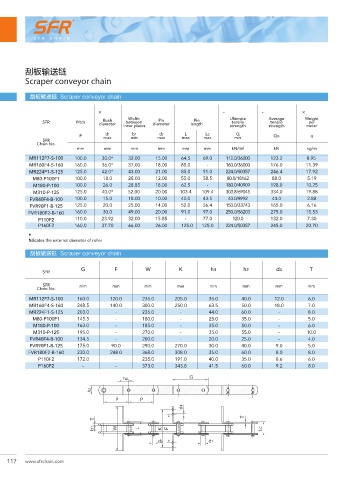

刮板输送链
Scraper conveyor chain

刮板输送链 Scraper conveyor chain

Ḥ
Ḥ
৽ݼ Ḥ ࢫए ส๣ᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ࠞཋঘഥᄛހ ௜नঘഥᄛހ Ḥ ૄ૜Ӊᇗ
Width
Bush
Pin
Pin
tensile
per
SFR Pitch diameter inner plates diameter length Ultimate Average Weight
between
tensile
strength
meter
strength
Q
L
Lc
b1
d1
d2
P max min max max max min Qo q
SFR
Chain No.
mm mm mm mm mm mm kN/lbf kN kg/m
MR112F7-S-100 100.0 30.0* 32.00 15.00 64.5 69.0 112.0/36000 123.2 8.95
MR160F4-S-160 160.0 36.0* 37.00 18.00 85.0 - 160.0/36000 176.0 11.39
MR224F1-S-125 125.0 42.0* 43.00 21.00 85.0 91.0 224.0/50357 246.4 17.92
M80-P100F1 100.0 18.0 28.00 12.00 55.0 58.5 80.0/18162 88.0 5.19
M180-P-100 100.0 26.0 28.85 18.00 62.5 - 180.0/40909 198.0 10.25
M310-P-125 125.0 40.0* 52.00 20.00 103.4 109.4 303.8/69045 334.0 19.88
FVR40F4-B-100 100.0 15.0 18.00 10.00 40.0 43.5 40.0/8992 44.0 2.88
FVR90F1-B-125 125.0 20.0 25.00 14.00 52.0 56.4 150.0/33743 165.0 6.16
FVR180F2-B-160 160.0 30.0 49.00 20.00 91.0 97.0 250.0/56203 275.0 15.53
P110F2 110.0 23.92 32.00 15.85 - 77.0 120.0 132.0 7.30
P160F2 160.0 37.70 66.00 26.00 125.0 125.0 224.0/50357 245.0 20.70
µ̷іൕݏሰຓࣥ
µ̷͖ͻͱͶͰͮ΁Ͳ΀Ḥ΁͵ͲḤͲ΅΁ͲͿͻͮ͹ḤͱͶͮͺͲ΁ͲͿḤͼͳḤͿͼ͹͹ͲͿ
刮板输送链 Scraper conveyor chain
Scraper conveyor chains
刮板输送链
৽ݼ G Ḥ F W K h4 h2 d4 T
SFR
SFR mm mm mm mm mm mm mm mm
Chain No.
MR112F7-S-100 160.0 120.0 235.0 205.0 35.0 40.0 12.0 6.0
MR160F4-S-160 248.5 140.0 300.0 250.0 63.5 50.0 18.0 7.0
MR224F1-S-125 203.0 - 235.0 - 44.0 60.0 - 8.0
M80-P100F1 145.5 - 180.0 - 25.0 35.0 - 5.0
M180-P-100 163.0 - 185.0 - 35.0 50.0 - 6.0
M310-P-125 195.0 - 270.0 - 35.0 55.0 - 10.0
FVR40F4-B-100 134.5 - 200.0 - 20.0 25.0 - 4.0
FVR90F1-B-125 175.0 90.0 290.0 270.0 30.0 40.0 9.0 5.0
FVR180F2-B-160 230.0 248.0 368.0 308.0 35.0 60.0 8.0 8.0
P110F2 172.0 - 235.0 191.0 40.0 35.0 8.6 6.0
P160F2 - - 373.0 343.8 41.5 60.0 9.2 8.0
G
h4
h2
P P
d4
T
T
b1 W L K F Lc
d2 d1
