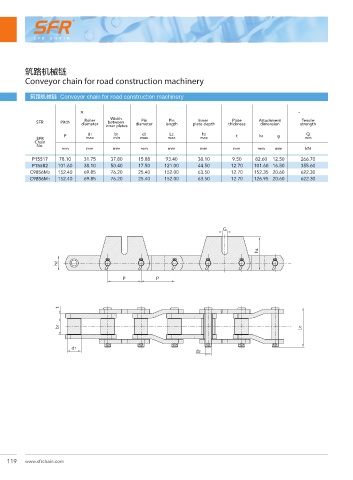

Page 136 - SFR Chain Catalogue v.3.1

筑路机械链
Conveyor chain for road construction machinery

筑路机械链 Conveyor chain for road construction machinery

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ଽ৽ϰۚ؇ ৽ϰި؇ ڸϰԄժ ॆঘ఼؇
Width
Inner
Tensile
Roller
Pin
Plate
Pin
between
SFR Pitch diameter inner plates diameter length plate depth thickness Attachment strength
dimension
P d1 b1 d2 Lc h2 t h4 g Q
SFR max min max max max min
Chain
No.
mm mm mm mm mm mm mm mm mm kN
P15517 78.10 31.75 37.80 15.88 93.40 38.10 9.50 82.60 12.50 266.70
P15582 101.60 38.10 50.40 17.50 121.00 44.50 12.70 101.60 16.50 355.60
C9856M2 152.40 69.85 76.20 25.40 152.00 63.50 12.70 152.35 20.60 622.30
C9856M1 152.40 69.85 76.20 25.40 152.00 63.50 12.70 126.95 20.60 622.30

G

h4

h2

P P

t

b1 Lc

d1
d2
