烟草机械输送链

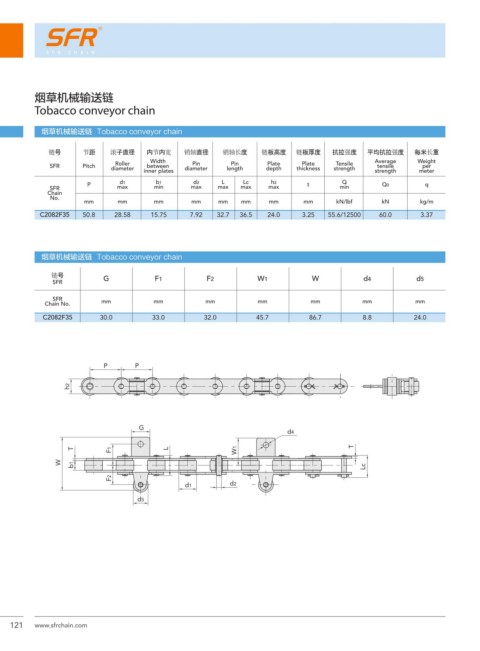

Tobacco conveyor chain

烟草机械输送链 Tobacco conveyor chain

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰۚ؇ ৽ϰި؇ ॆঘ఼؇ ௜नॆঘ఼؇ ૄ૜Ӊᇗ
Width
Roller
Plate
Plate
Pin
Pin
Tensile
between
SFR Pitch diameter inner plates diameter length depth thickness strength Average Weight
tensile
per
meter
strength
P d1 b1 d2 L Lc h2 t Q Q0 q
SFR max min max max max max min
Chain
No.
mm mm mm mm mm mm mm mm kN/lbf kN kg/m
C2082F35 50.8 28.58 15.75 7.92 32.7 36.5 24.0 3.25 55.6/12500 60.0 3.37
烟草机械输送链 Tobacco conveyor chain
৽ݼ G F1 F2 W1 W d4 d5
SFR
SFR
Chain No. mm mm mm mm mm mm mm
C2082F35 30.0 33.0 32.0 45.7 86.7 8.8 24.0

P P

h2

G
d4
T F1 L W1 T
W b1 Lc

F2
d1 d2
d5
