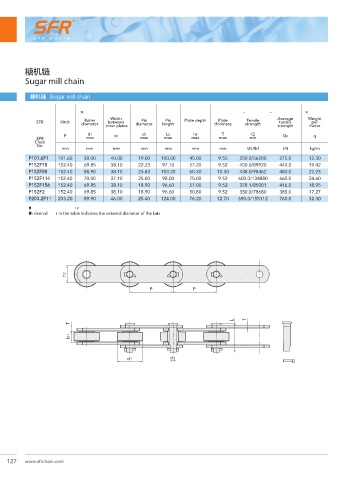

Page 144 - SFR Chain Catalogue v.3.1

糖机链
Sugar mill chain

糖机链 Sugar mill chain

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰۚ؇ ৽ϰި؇ ॆঘ఼؇ ௜नॆঘ఼؇ ૄ૜Ӊᇗ
Width
Pin
Pin
Roller
Tensile
Plate
SFR Pitch diameter inner plates diameter length Plate depth thickness strength Average Weight
per
tensile
between
strength
meter
P d1 b1 d2 Lc h2 T Q Q0 q
SFR max max max max max min
Chain
No.
mm mm mm mm mm mm mm kN/lbf kN kg/m
P101.6F1 101.60 30.00 40.00 19.00 100.00 45.00 9.50 250.0/56200 275.0 12.50
P152F78 152.40 69.85 38.10 22.23 97.10 57.20 9.52 400.0/89920 440.0 19.42
P152F88 152.40 88.90 38.10 23.83 103.20 60.30 10.30 438.0/98462 480.0 22.23
P152F114 152.40 70.00 37.10 25.00 98.00 75.00 9.52 600.0/134880 660.0 24.60
P152F156 152.40 69.85 38.10 18.90 96.60 57.00 9.52 378.1/85001 416.0 18.95
P152F2 152.40 69.85 38.10 18.90 96.60 50.80 9.52 350.0/78680 385.0 17.27
P203.2F11 203.20 89.90 46.00 25.40 124.00 76.20 12.70 690.0/155112 760.0 32.30
µ̷ส๣৽ğіᇏݏሰᆰࣥͱູ̾ส๣ᆰࣥ
µ̷͏΂΀͵ḤͰ͵ͮͶͻ͇Ḥͱ̾ḤͶͻḤ΁͵ͲḤ΁ͮͯ͹ͲḤͶͻͱͶͰͮ΁Ͳ΀Ḥ΁͵ͲḤͲ΅΁ͲͿͻͮ͹ḤͱͶͮͺͲ΁ͲͿḤͼͳḤ΁͵ͲḤͯ΂΀͵

h2

P P

L T
T
b1

d1 d2
