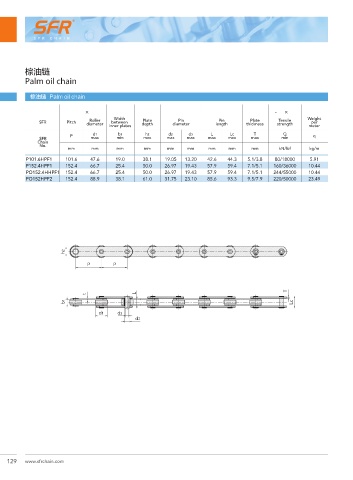

Page 146 - SFR Chain Catalogue v.3.1

棕油链
Palm oil chain

棕油链 Palm oil chain

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ৽ϰۚ؇ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰި؇ ॆঘ఼؇ ૄ૜Ӊᇗ
Width
Roller
Plate
Pin
Plate
Pin
Tensile
between
per
SFR Pitch diameter inner plates depth diameter length thickness strength Weight
meter
P d1 b1 h2 d2 d3 L Lc T Q q
SFR max min max max max max max max min
Chain
No.
mm mm mm mm mm mm mm mm mm kN/lbf kg/m
P101.6HPF1 101.6 47.6 19.0 38.1 19.05 13.20 42.6 44.3 5.1/3.8 80/18000 5.91
P152.4HPF1 152.4 66.7 25.4 50.0 26.97 19.43 57.9 59.4 7.1/5.1 160/36000 10.44
PO152.4HHPF1 152.4 66.7 25.4 50.0 26.97 19.43 57.9 59.4 7.1/5.1 244/55000 10.44
PO152HPF2 152.4 88.9 38.1 61.0 31.75 23.10 85.6 93.3 9.5/7.9 220/50000 23.49

h2

P P

T
t L
b1 Lc
d1 d3
d2
