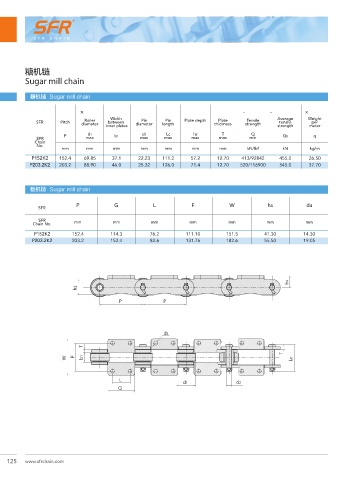

Page 142 - SFR Chain Catalogue v.3.1

糖机链
Sugar mill chain

糖机链 Sugar mill chain

৽ݼ ࢫए ݏሰᆰࣥ ଽࢫଽॺ ཧᇠᆰࣥ ཧᇠӉ؇ ৽ϰۚ؇ ৽ϰި؇ ॆঘ఼؇ ௜नॆঘ఼؇ ૄ૜Ӊᇗ
Width
Tensile
Plate
Pin
Roller
Pin
between
tensile
SFR Pitch diameter inner plates diameter length Plate depth thickness strength Average Weight
per
meter
strength
P d1 b1 d2 Lc h2 T Q Q0 q
SFR max max max max max min
Chain
No.
mm mm mm mm mm mm mm kN/lbf kN kg/m
P152K2 152.4 69.85 37.1 22.23 111.2 57.2 12.70 413/92842 455.0 26.50
P203.2K2 203.2 88.90 46.0 25.32 126.0 71.4 12.70 520/116900 545.0 37.70
糖机链 Sugar mill chain
৽ݼ P G L F W h4 d4
SFR
SFR
Chain No. mm mm mm mm mm mm mm
P152K2 152.4 114.3 76.2 111.10 151.5 41.30 14.30
P203.2K2 203.2 152.4 82.6 131.76 182.6 55.50 19.05

h4
h2

P P

d4

T
T
W F b1 Lc

L
d1 d2
G
