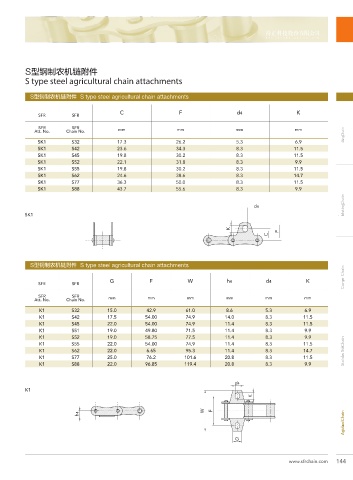

Page 161 - SFR Chain Catalogue v.3.1

S型钢制农机链附件
S type steel agricultural chain attachments

S型钢制农机链附件 S type steel agricultural chain attachments

ڸࡱݼ ৽ݼ C F d4 K
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm Ԯ׮৽ ͑ͿͶ΃ͶͻʹḤ͐͵ͮͶͻ
SK1 S32 17.3 26.2 5.3 6.9
SK1 S42 23.6 34.3 8.3 11.5
SK1 S45 19.8 30.2 8.3 11.5
SK1 S52 22.1 31.8 8.3 9.9
SK1 S55 19.8 30.2 8.3 11.5
SK1 S62 24.6 38.6 8.3 14.7
SK1 S77 36.3 50.0 8.3 11.5
SK1 S88 43.7 55.6 8.3 9.9

d4 ှႄ৽Ḥ ͕ͼͶ΀΁ͶͻʹḤ͐͵ͮͶͻ
̾͘͠

K
F
C

S型钢制农机链附件 S type steel agricultural chain attachments

ڸࡱݼ ৽ݼ G F W h4 d4 K ͐ͼͻ΃ͲΆͼͿḤ͐͵ͮͶͻ
SFR SFR ൻෂ৽

SFR SFR
Att. No. Chain No. mm mm mm mm mm mm
K1 S32 15.0 42.9 61.0 8.6 5.3 6.9
K1 S42 17.5 54.00 74.9 14.0 8.3 11.5
K1 S45 22.0 54.00 74.9 11.4 8.3 11.5
K1 S51 19.0 49.80 71.5 11.4 8.3 9.9
K1 S52 19.0 58.75 77.5 11.4 8.3 9.9
K1 S55 22.0 54.00 74.9 11.4 8.3 11.5 ͠΁ͮͶͻ͹Ͳ΀΀Ḥ͠΁ͲͲ͹Ḥ͐͵ͮͶͻ
K1 S62 22.0 6.65 95.3 11.4 8.3 14.7
K1 S77 25.0 76.2 101.6 20.8 8.3 11.5 ҂ྭۑ৽
K1 S88 22.0 96.85 119.4 20.8 8.3 9.9

d4
̾͘
K

W F
h4 ͎ʹͿͶͰ΂͹΁΂Ϳͮ͹Ḥ͐͵ͮͶͻ
୪ࠏ৽

G
