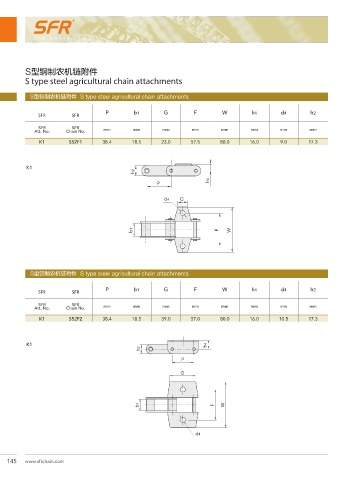

S型钢制农机链附件
S type steel agricultural chain attachments
S型钢制农机链附件 S type steel agricultural chain attachments
ڸࡱݼ ৽ݼ P b1 G F W h4 d4 h2
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm mm mm mm
K1 S52F1 38.4 18.5 23.0 57.5 80.0 16.0 9.0 17.3
̾͘
h2
P h4
d4 G
b1 F W
S型钢制农机链附件 S type steel agricultural chain attachments
S型钢制农机链附件 S type steel agricultural chain attachments
ڸࡱݼ ৽ݼ P b1 G F W h4 d4 h2
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm mm mm mm
K1 S52F2 38.4 18.5 39.0 57.0 80.0 16.0 10.5 17.3
̾͘ h4
h2
P
G
b1 F W
d4
