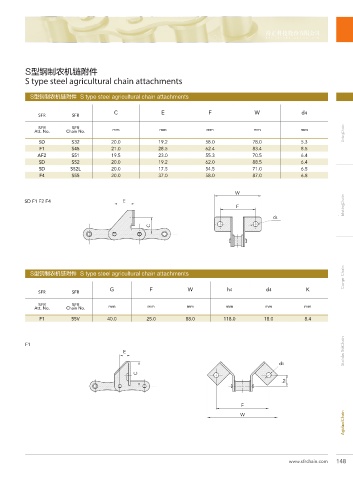

S型钢制农机链附件
S type steel agricultural chain attachments

S型钢制农机链附件 S type steel agricultural chain attachments

ڸࡱݼ ৽ݼ C E F W d4
SFR SFR
SFR SFR
Att. No. Chain No. mm mm mm mm mm Ԯ׮৽ ͑ͿͶ΃ͶͻʹḤ͐͵ͮͶͻ
SD S32 20.0 19.2 58.0 78.0 5.3
F1 S45 21.0 28.5 62.4 83.4 8.5
AF2 S51 19.5 23.0 55.3 70.5 6.4
SD S52 20.0 19.2 62.0 88.5 6.4
SD S52L 20.0 17.5 54.5 71.0 6.5
F4 S55 20.0 37.0 58.0 87.0 6.8

W
̹͑͠Ḥ͓̹̾Ḥ͓̹̿Ḥ͓́ E ͕ͼͶ΀΁ͶͻʹḤ͐͵ͮͶͻ
ှႄ৽Ḥ
F
d4
C

S型钢制农机链附件 S type steel agricultural chain attachments ͐ͼͻ΃ͲΆͼͿḤ͐͵ͮͶͻ
ൻෂ৽
ڸࡱݼ ৽ݼ G F W h4 d4 K
SFR SFR

SFR SFR
Att. No. Chain No. mm mm mm mm mm mm
F1 55V 40.0 25.0 88.0 118.0 18.0 8.4

͓̾ ͠΁ͮͶͻ͹Ͳ΀΀Ḥ͠΁ͲͲ͹Ḥ͐͵ͮͶͻ
E
҂ྭۑ৽
d4
C
h4

F
W ͎ʹͿͶͰ΂͹΁΂Ϳͮ͹Ḥ͐͵ͮͶͻ
୪ࠏ৽
