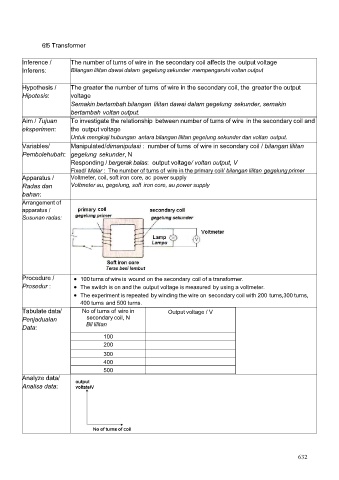

Page 633 - MODUL SPEKTRUM FIZIK SPM

6.15 Transformer

Inference / The number of turns of wire in the secondary coil affects the output voltage
Inferens: Bilangan lilitan dawai dalam gegelung sekunder mempengaruhi voltan output

Hypothesis / The greater the number of turns of wire in the secondary coil, the greater the output
Hipotesis: voltage
Semakin bertambah bilangan lilitan dawai dalam gegelung sekunder, semakin
bertambah voltan output.
Aim / Tujuan To investigate the relationship between number of turns of wire in the secondary coil and
eksperimen: the output voltage
Untuk mengkaji hubungan antara bilangan lilitan gegelung sekunder dan voltan output.
Variables/ Manipulated/dimanipulasi : number of turns of wire in secondary coil / bilangan lilitan
Pembolehubah: gegelung sekunder, N
Responding / bergerak balas: output voltage/ voltan output, V
Fixed/ Malar : The number of turns of wire in the primary coil/ bilangan lilitan gegelung primer
Apparatus / Voltmeter, coil, soft iron core, ac power supply
Radas dan Voltmeter au, gegelung, soft iron core, au power supply
bahan:
Arrangement of
apparatus /
Susunan radas:

Procedure / • 100 turns of wire is wound on the secondary coil of a transformer.
Prosedur : • The switch is on and the output voltage is measured by using a voltmeter.
• The experiment is repeated by winding the wire on secondary coil with 200 turns,300 turns,
400 turns and 500 turns.
Tabulate data/ No of turns of wire in Output voltage / V
Penjadualan secondary coil, N
Data: Bil lilitan
100
200
300
400
500

Analyze data/
Analisa data:
