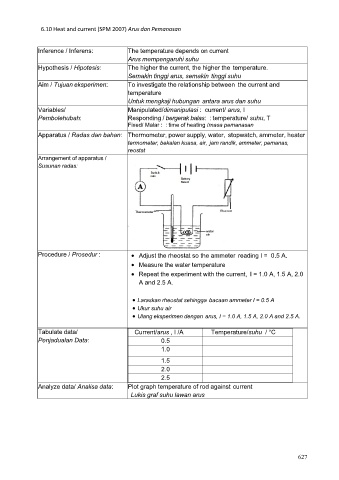

6.10 Heat and current (SPM 2007) Arus dan Pemanasan
Inference / Inferens:
Hypothesis / Hipotesis:
Aim / Tujuan eksperimen:
Variables/
Pembolehubah:
Apparatus / Radas dan bahan: Thermometer, power supply, water, stopwatch, ammeter, heater
Arrangement of apparatus /
Susunan radas:
Procedure / Prosedur :
Tabulate data/
Penjadualan Data:
Analyze data/ Analisa data:
The temperature depends on current
Arus mempengaruhi suhu
The higher the current, the higher the temperature.
Semakin tinggi arus, semakin tinggi suhu
To investigate the relationship between the current and
temperature
Untuk mengkaji hubungan antara arus dan suhu
Manipulated/dimanipulasi : current/ arus, I
Responding / bergerak balas: : temperature/ suhu, T
Fixed/ Malar : : time of heating /masa pemanasan
termometer, bekalan kuasa, air, jam randik, ammeter, pemanas,
reostat
• Adjust the rheostat so the ammeter reading I = 0.5 A.
• Measure the water temperature
• Repeat the experiment with the current, I = 1.0 A, 1.5 A, 2.0
A and 2.5 A.
• Laraskan rheostat sehingga bacaan ammeter I = 0.5 A
• Ukur suhu air
• Ulang eksperimen dengan arus, I = 1.0 A, 1.5 A, 2.0 A and 2.5 A.
Current/arus , I /A Temperature/suhu / °C
0.5
1.0
1.5
2.0
2.5
Plot graph temperature of rod against current
Lukis graf suhu lawan arus
