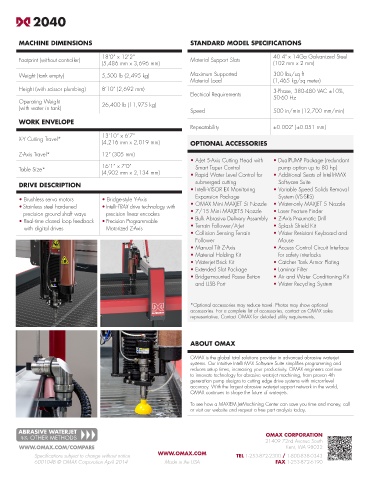

Page 30 - Waterjet

2040

MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS

18’0” x 12’2” 40 4" x 14Ga Galvanized Steel
Footprint (without controller) Material Support Slats
(5,486 mm x 3,696 mm) (102 mm x 2 mm)
Weight (tank empty) 5,500 lb (2,495 kg) Maximum Supported 300 lbs/sq ft
Material Load (1,465 kg/sq meter)
Height (with scissor plumbing) 8’10” (2,692 mm) 3-Phase, 380-480 VAC ±10%,
Electrical Requirements 50-60 Hz
Operating Weight 26,400 lb (11,975 kg)
(with water in tank)
Speed 500 in/min (12,700 mm/min)
WORK ENVELOPE
Repeatability ±0.002" (±0.051 mm)
13’10” x 6’7”
X-Y Cutting Travel*
(4,216 mm x 2,019 mm) OPTIONAL ACCESSORIES
Z-Axis Travel* 12” (305 mm)
• A-Jet 5-Axis Cutting Head with • DualPUMP Package (redundant
16’1” x 7’0” Smart Taper Control pump option up to 80 hp)
Table Size*
(4,902 mm x 2,134 mm) • Rapid Water Level Control for • Additional Seats of Intelli-MAX
DRIVE DESCRIPTION submerged cutting Software Suite
• Intelli-VISOR EX Monitoring • Variable Speed Solids Removal
• Brushless servo motors • Bridge-style Y-Axis Expansion Package System (VS-SRS)
• Stainless steel hardened • Intelli-TRAX drive technology with • OMAX Mini MAXJET 5i Nozzle • Water-only MAXJET 5 Nozzle
precision ground shaft ways precision linear encoders • 7/15 Mini MAXJET5 Nozzle • Laser Feature Finder
• Real-time closed loop feedback • Precision Programmable • Bulk Abrasive Delivery Assembly • Z-Axis Pneumatic Drill
with digital drives Motorized Z-Axis • Terrain Follower/A-Jet • Splash Shield Kit
• Collision Sensing Terrain • Water Resistant Keyboard and
Follower Mouse
• Manual Tilt Z-Axis • Access Control Circuit Interface
• Material Holding Kit for safety interlocks
• Waterjet Brick Kit • Catcher Tank Armor Plating
• Extended Slat Package • Laminar Filter
• Bridge-mounted Pause Button • Air and Water Conditioning Kit
and USB Port • Water Recycling System

*Optional accessories may reduce travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Contact OMAX for detailed utility requirements.

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
reduces setup times, increasing your productivity. OMAX engineers continue
to innovate technology for abrasive waterjet machining, from proven 4th
generation pump designs to cutting edge drive systems with micron-level
accuracy. With the largest abrasive waterjet support network in the world,
OMAX continues to shape the future of waterjets.

To see how a MAXIEM JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.

ABRASIVE WATERJET
vs. OTHER METHODS OMAX CORPORATION
21409 72nd Avenue South
WWW.OMAX.COM/COMPARE Kent, WA 98032
Specifications subject to change without notice. WWW.OMAX.COM TEL 1-253-872-2300 / 1-800-838-0343
600104B © OMAX Corporation April 2014 Made in the USA FAX 1-253-872-6190
