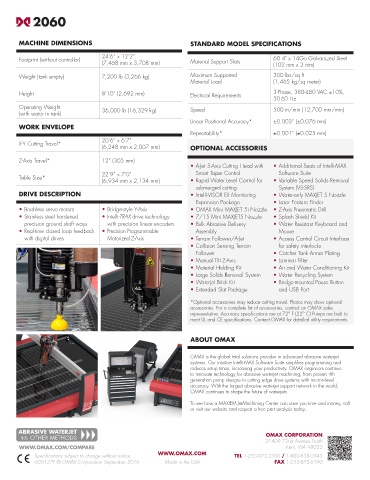

Page 32 - Waterjet

2060

MACHINE DIMENSIONS STANDARD MODEL SPECIFICATIONS

24’6” x 12’2” 60 4" x 14Ga Galvanized Steel
Footprint (without controller)
(7,468 mm x 3,708 mm) Material Support Slats (102 mm x 2 mm)
Weight (tank empty) 7,200 lb (3,266 kg) Maximum Supported 300 lbs/sq ft
Material Load (1,465 kg/sq meter)

Height 8’10” (2,692 mm) Electrical Requirements 3-Phase, 380-480 VAC ±10%,
50-60 Hz
Operating Weight Speed 500 in/min (12,700 mm/min)
(with water in tank) 36,000 lb (16,329 kg)
Linear Positional Accuracy* ±0.003” (±0.076 mm)
WORK ENVELOPE
Repeatability* ±0.001” (±0.025 mm)
20’6” x 6’7”
X-Y Cutting Travel*
(6,248 mm x 2,007 mm) OPTIONAL ACCESSORIES
Z-Axis Travel* 12” (305 mm)
• A-Jet 5-Axis Cutting Head with • Additional Seats of Intelli-MAX
22’9” x 7’0” Smart Taper Control Software Suite
Table Size*
(6,934 mm x 2,134 mm) • Rapid Water Level Control for • Variable Speed Solids Removal
submerged cutting System (VS-SRS)
DRIVE DESCRIPTION • Intelli-VISOR EX Monitoring • Water-only MAXJET 5 Nozzle
Expansion Package • Laser Feature Finder
• Brushless servo motors • Bridge-style Y-Axis • OMAX Mini MAXJET 5i Nozzle • Z-Axis Pneumatic Drill
• Stainless steel hardened • Intelli-TRAX drive technology • 7/15 Mini MAXJET5 Nozzle • Splash Shield Kit
precision ground shaft ways with precision linear encoders • Bulk Abrasive Delivery • Water Resistant Keyboard and
• Real-time closed loop feedback • Precision Programmable Assembly Mouse
with digital drives Motorized Z-Axis • Terrain Follower/A-Jet • Access Control Circuit Interface
• Collision Sensing Terrain for safety interlocks
Follower • Catcher Tank Armor Plating
• Manual Tilt Z-Axis • Laminar Filter
• Material Holding Kit • Air and Water Conditioning Kit
• Large Solids Removal System • Water Recycling System
• Waterjet Brick Kit • Bridge-mounted Pause Button
• Extended Slat Package and USB Port

*Optional accessories may reduce cutting travel. Photos may show optional
accessories. For a complete list of accessories, contact an OMAX sales
representative. Accuracy specifications are at 72° F (22° C) Pumps are built to
meet UL and CE specifications. Contact OMAX for detailed utility requirements.

ABOUT OMAX

OMAX is the global total solutions provider in advanced abrasive waterjet
systems. Our intuitive Intelli-MAX Software Suite simplifies programming and
reduces setup times, increasing your productivity. OMAX engineers continue
to innovate technology for abrasive waterjet machining, from proven 4th
generation pump designs to cutting edge drive systems with micron-level
accuracy. With the largest abrasive waterjet support network in the world,
OMAX continues to shape the future of waterjets.
To see how a MAXIEM JetMachining Center can save you time and money, call
or visit our website and request a free part analysis today.

ABRASIVE WATERJET
vs. OTHER METHODS OMAX CORPORATION
21409 72nd Avenue South
WWW.OMAX.COM/COMPARE Kent, WA 98032
Specifications subject to change without notice. WWW.OMAX.COM TEL 1-253-872-2300 / 1-800-838-0343
600127F © OMAX Corporation September 2016 Made in the USA FAX 1-253-872-6190
