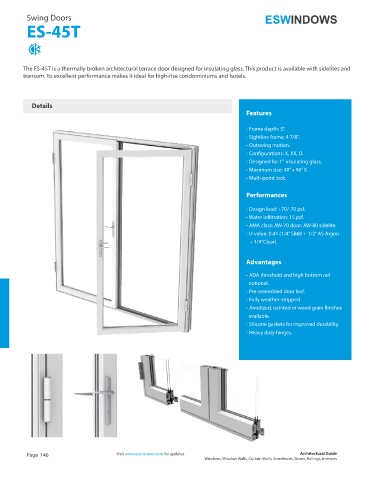

Swing Doors
ES-45T

The ES-45T is a thermally broken architectural terrace door designed for insulating glass. This product is available with sidelites and
transom. Its excellent performance makes it ideal for high-rise condominiums and hotels.

Details
Features

- Frame depth: 5”.
- Sightline frame: 4 7/8”.
- Outswing motion.
- Configurations: X, XX, O.
- Designed for 1” insulating glass.
- Maximum size: 48” x 96” X.
- Multi-point lock.

Performances

- Design load: +70/-70 psf.
- Water infiltration: 15 psf.
- AMA class: AW-70 door; AW-80 sidelite.
- U-value: 0.41 (1/4” SB60 + 1/2” AS Argon
--+ 1/4”Clear).

Advantages

- ADA threshold and high bottom rail
optional.
- Pre-assembled door leaf.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
- Heavy duty hinges.
