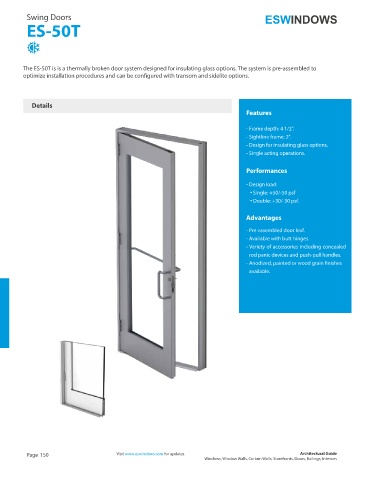

Page 150 - Architectural Guide ESWindows 2019

Swing Doors
ES-50T

The ES-50T is is a thermally broken door system designed for insulating glass options. The system is pre-assembled to
optimize installation procedures and can be configured with transom and sidelite options.

Details
Features

- Frame depth: 4 1/2”.
- Sightline frame: 2”.
- Design for insulating glass options.
- Single acting operations.

Performances

- Design load:
Single: +50/-50 psf
Double: +30/-30 psf.

Advantages

- Pre-assembled door leaf.
- Available with butt hinges.
- Variety of accessories including concealed
- rod panic devices and push-pull handles.
- Anodized, painted or wood grain finishes -
-.available.

THERMAL DOOR SYSTEM www.eswindows.com
ES-50T
System Description
· Thermal door system.
· Frame depth: 4 1/2"
· Sightline: 2"
· Designed for: Insulated glass.
Features
· Single acting operation.
· Pre-assembled door leaf.
· Available with butt hinges
· Variety of accessories including: concealed rod
panic devices and push-pull handles
· Anodized, painted or wood grain finishes
available
Test
· Design loads:
Single: +50/-50 psf.
Double: +30/-30 psf.
Configurations

Page 150 Visit www.eswindows.com for updates. Architectural Guide
Windows, Window Walls, Curtain Walls, Storefronts, Doors, Railings, Interiors

SINGLE DOOR SINGLE DOOR WITH TRANSOM DOUBLE DOOR
Version. 1 November 21th/2017
FT-DD-139
