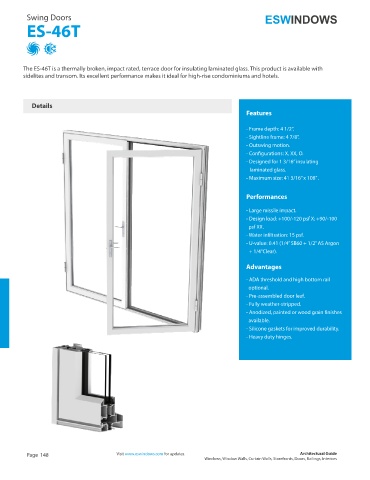

Page 148 - Architectural Guide ESWindows 2019

Swing Doors
ES-46T

The ES-46T is a thermally broken, impact rated, terrace door for insulating laminated glass. This product is available with
sidelites and transom. Its excellent performance makes it ideal for high-rise condominiums and hotels.

Details
Features

- Frame depth: 4 1/2”.
- Sightline frame: 4 7/8”.
- Outswing motion.
- Configurations: X, XX, O.
- Designed for 1 3/16” insulating
laminated glass.
- Maximum size: 41 3/16” x 108” .

Performances

- Large missile impact.
- Design load: +100/-120 psf X; +90/-100
psf XX.
- Water infiltration: 15 psf.
- U-value: 0.41 (1/4” SB60 + 1/2” AS Argon
- + 1/4”Clear).

Advantages

- ADA threshold and high bottom rail
optional.
- Pre-assembled door leaf.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Silicone gaskets for improved durability.
- Heavy duty hinges.
