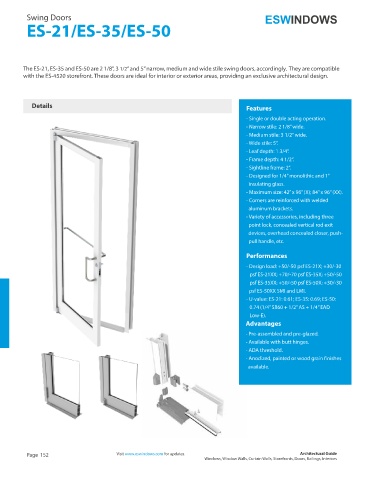

Page 152 - Architectural Guide ESWindows 2019

Swing Doors
ES-21/ES-35/ES-50

The ES-21, ES-35 and ES-50 are 2 1/8”, 3 1/2” and 5” narrow, medium and wide stile swing doors, accordingly. They are compatible
with the ES-4520 storefront. These doors are ideal for interior or exterior areas, providing an exclusive architectural design.

Details Features

- Single or double acting operation.
- Narrow stile: 2 1/8” wide.
- Medium stile: 3 1/2” wide.
- Wide stile: 5”.
- Leaf depth: 1 3/4”.
- Frame depth: 4 1/2”.
- Sightline frame: 2”.
- Designed for 1/4” monolithic and 1”
insulating glass.
- Maximum size: 42” x 96” (X); 84” x 96” (XX).
- Corners are reinforced with welded
aluminum brackets.
- Variety of accessories, including three
point lock, concealed vertical rod exit
devices, overhead concealed closer, push-
pull handle, etc.

Performances
- Design load: +50/-50 psf ES-21X; +30/-30
psf ES-21XX; +70/-70 psf ES-35X; +50/-50
psf ES-35XX; +50/-50 psf ES-50X; +30/-30
-psf ES-50XX SMI and LMI.
- U-value: ES-21: 0.61; ES-35: 0.69; ES-50:
--0.74 (1/4” SB60 + 1/2” AS + 1/4” EAD
--Low-E).
Advantages
- Pre-assembled and pre-glazed.
- Available with butt hinges.
- ADA threshold.
- Anodized, painted or wood grain finishes
available.
