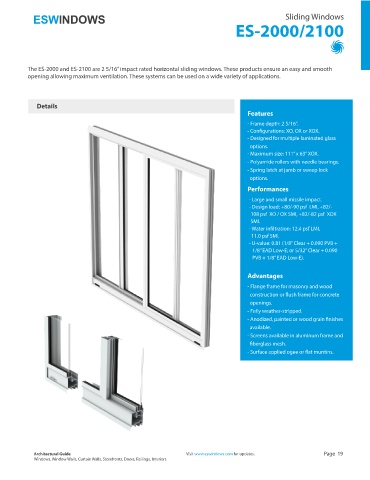

Page 19 - Architectural Guide ESWindows 2019

Sliding Windows
ES-2000/2100

The ES-2000 and ES-2100 are 2 5/16” impact rated horizontal sliding windows. These products ensure an easy and smooth
opening allowing maximum ventilation. These systems can be used on a wide variety of applications.

Details
Features

- Frame depth: 2 5/16”.
- Configurations: XO, OX or XOX.
- Designed for multiple laminated glass
options.
- Maximum size: 111” x 63” XOX.
- Polyamide rollers with needle bearings.
- Spring latch at jamb or sweep lock
options.
Performances
- Large and small missile impact.
- Design load: +80/-90 psf LMI, +82/-
-108 psf XO / OX SMI, +82/-82 psf XOX
-SMI.
- Water infiltration: 12.4 psf LMI,
11.0 psf SMI.
- U-value: 0.81 (1/8” Clear + 0.090 PVB +
--1/8” EAD Low-E; or 5/32” Clear + 0.090
--PVB + 1/8” EAD Low-E).

Advantages
- Flange frame for masonry and wood
construction or flush frame for concrete
openings.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Surface applied ogee or flat muntins.

Architectural Guide Visit www.eswindows.com for updates. Page 19
Windows, Window Walls, Curtain Walls, Storefronts, Doors, Railings, Interiors
