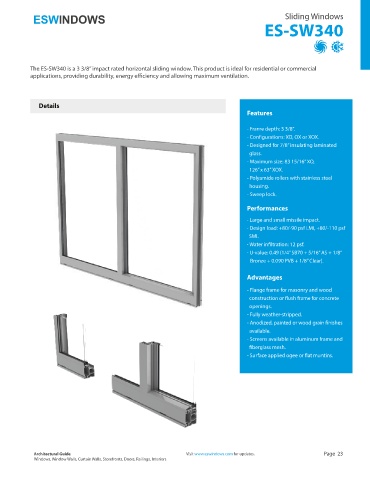

Page 23 - Architectural Guide ESWindows 2019

Sliding Windows
ES-SW340

The ES-SW340 is a 3 3/8” impact rated horizontal sliding window. This product is ideal for residential or commercial
applications, providing durability, energy efficiency and allowing maximum ventilation.

Details
Features

- Frame depth: 3 3/8”.
- Configurations: XO, OX or XOX.
- Designed for 7/8” insulating laminated
glass.
- Maximum size: 83 15/16” XO,
126” x 63” XOX.
- Polyamide rollers with stainless steel
housing.
- Sweep lock.

Performances

- Large and small missile impact.
- Design load: +80/-90 psf LMI, +80/-110 psf
SMI.
- Water infiltration: 12 psf.
- U-value: 0.49 (1/4” SB70 + 5/16” AS + 1/8”
--Bronze + 0.090 PVB + 1/8” Clear).

Advantages

- Flange frame for masonry and wood
construction or flush frame for concrete
openings.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Screens available in aluminum frame and
fiberglass mesh.
- Surface applied ogee or flat muntins.
