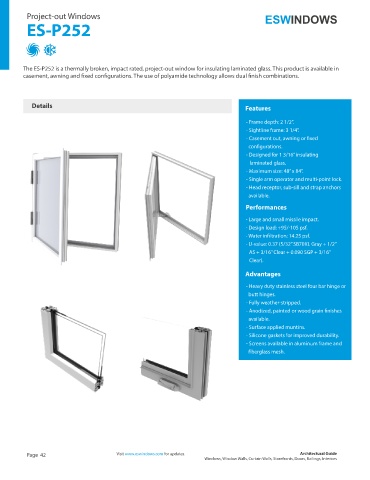

Page 42 - Architectural Guide ESWindows 2019

Project-out Windows
ES-P252

The ES-P252 is a thermally broken, impact rated, project-out window for insulating laminated glass. This product is available in
casement, awning and fixed configurations. The use of polyamide technology allows dual finish combinations.

Details Features

- Frame depth: 2 1/2”.
- Sightline frame: 3 1/4”.
- Casement out, awning or fixed
configurations.
- Designed for 1 3/16” insulating
laminated glass.
- Maximum size: 48” x 84”.
- Single arm operator and multi-point lock.
- Head receptor, sub-sill and strap anchors
available.
Performances
- Large and small missile impact.
- Design load: +95/-105 psf.
- Water infiltration: 14.25 psf.
- U-value: 0.37 (5/32” SB70XL Gray + 1/2”
--AS + 3/16” Clear + 0.090 SGP + 3/16”
--Clear).

Advantages
- Heavy duty stainless steel four bar hinge or
butt hinges.
- Fully weather-stripped.
- Anodized, painted or wood grain finishes
available.
- Surface applied muntins.
- Silicone gaskets for improved durability.
- Screens available in aluminum frame and
fiberglass mesh.
