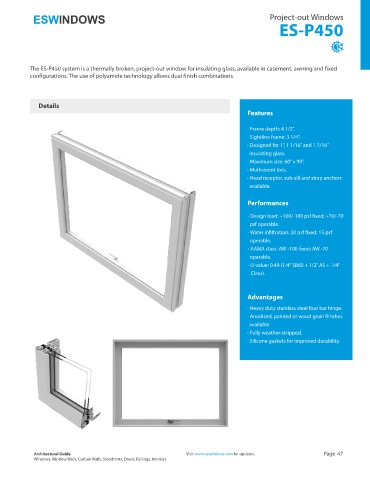

Page 47 - Architectural Guide ESWindows 2019

Project-out Windows
ES-P450

The ES-P450 system is a thermally broken, project-out window for insulating glass, available in casement, awning and fixed
configurations. The use of polyamide technology allows dual finish combinations.

Details
Features

- Frame depth: 4 1/2”.
- Sightline frame: 3 1/4”.
- Designed for 1”, 1 1/16” and 1 7/16”
insulating glass.
- Maximum size: 60” x 99”.
- Multi-point lock.
- Head receptor, sub-sill and strap anchors
available.

Performances

- Design load: +100/-100 psf fixed; +70/-70
psf operable.
- Water infiltration: 20 psf fixed; 15 psf
operable.
- AAMA class: AW -100 fixed; AW -70
operable.
- U-value: 0.49 (1/4” SB60 + 1/2” AS + 1/4”
+Clear).

Advantages

- Heavy duty stainless steel four bar hinge.
- Anodized, painted or wood grain finishes
available.
- Fully weather-stripped.
- Silicone gaskets for improved durability.
