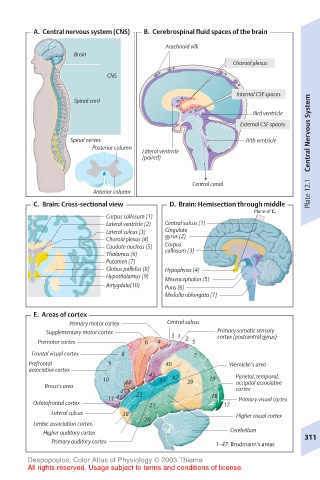

A. Central nervous system (CNS) B. Cerebrospinal fluid spaces of the brain
Arachnoid villi
Brain
Choroid plexus
CNS

Internal CSF spaces
Spinal cord
IIIrd ventricle
External CSF spaces
Spinal nerves IVth ventricle Central Nervous System
Posterior column
Lateral ventricle
(paired)

Central canal
Anterior column Plate 12.1
C. Brain: Cross-sectional view D. Brain: Hemisection through middle
Plane of C.
Corpus callosum (1)
Lateral ventricle (2) Central sulcus (1)
Lateral sulcus (3) Cingulate
Choroid plexus (4) gyrus (2)
Caudate nucleus (5) Corpus
callosum (3)
Thalamus (6)
Putamen (7)
Globus pallidus (8) Hypophysis (4)
Hypothalamus (9) Mesencephalon (5)
Amygdala(10) Pons (6)
Medulla oblongata (7)

E. Areas of cortex
Primary motor cortex Central sulcus
Supplementary motor cortex 3 1 Primary somatic sensory
cortex (postcentral gyrus)
Premotor cortex 6 4 2 5
Frontal visual cortex 8 7
Prefrontal 9 40 Wernicke’s area
associative cortex
43 Parietal, temporal,
10 41 42 39 19
Broca’s area 44 occipital associative
45 cortex
11 47 22 18 Primary visual cortex
Orbitofrontal cortex 21 17
Lateral sulcus 38 Higher visual cortex
Limbic association cortex. 20
Higher auditory cortex Cerebellum
Primary auditory cortex 311
1–47: Brodmann’s areas
