60 The arteries II and the veins

C6 Subclavian artery
Inferior
Costocervical
thyroid artery
trunk
Vertebral artery
Scalenus anterior First rib
Thyrocervical
trunk Superior
Costocervical intercostal artery
trunk
Dorsal scapular
(usually)
Apex of lung
Axillary artery
Subclavian artery
First rib

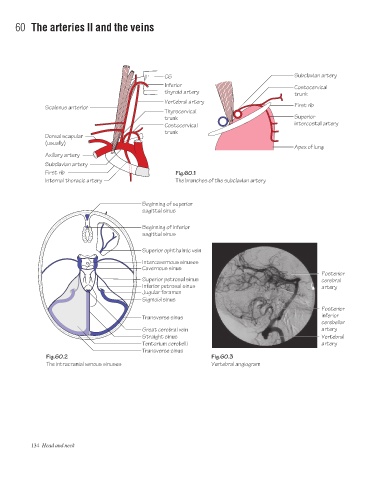

Fig.60.1
Internal thoracic artery The branches of the subclavian artery

Beginning of superior
sagittal sinus

Beginning of inferior
sagittal sinus

Superior ophthalmic vein

Intercavernous sinuses
Cavernous sinus
Posterior
Superior petrosal sinus cerebral
Inferior petrosal sinus artery
Jugular foramen
Sigmoid sinus
Posterior
Transverse sinus inferior
cerebellar
Great cerebral vein artery
Straight sinus Vertebral
Tentorium cerebelli artery
Transverse sinus
Fig.60.2 Fig.60.3
The intracranial venous sinuses Vertebral angiogram
