Product features

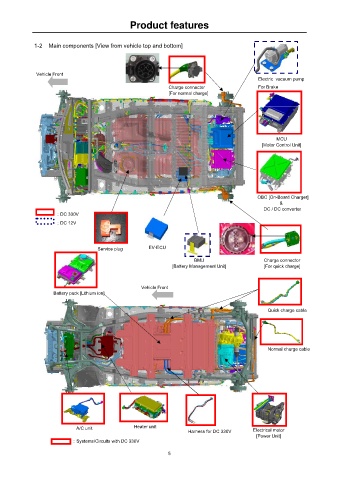

1-2 Main components [View from vehicle top and bottom]
Vehicle Front
Electric vacuum pump
Charge connector For Brake
[For normal charge]
MCU
[Motor Control Unit]
OBC [On-Board Charger]
＆
DC / DC converter
：DC 330V
：DC 12V
Service plug EV-ECU
BMU Charge connector
[Battery Management Unit] [For quick charge]
Vehicle Front
Battery pack [Lithium ion]
Quick charge cable
Normal charge cable
A/C unit Heater unit Electrical motor
Harness for DC 330V
[Power Unit]
：Systems/Circuits with DC 330V
５
