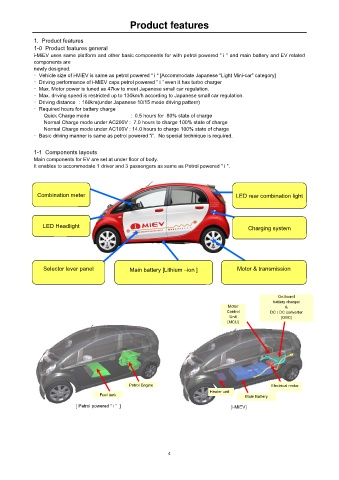

Product features

1. Product features
1-0 Product features general
i-MiEV uses same platform and other basic components for with petrol powered “ i “ and main battery and EV related
components are
newly designed.
・Vehicle size of i-MiEV is same as petrol powered “ i “ [Accommodate Japanese “Light Mini-car” category]
・Driving performance of i-MiEV caps petrol powered “ i “ even it has turbo charger
・Max. Motor power is tuned as 47kw to meet Japanese small car regulation.
・Max. driving speed is restricted up to 130km/h according to Japanese small car regulation.
・Driving distance ：160km(under Japanese 10/15 mode driving pattern)
・Required hours for battery charge
Quick Charge mode : 0.5 hours for 80% state of charge
Normal Charge mode under AC200V : 7.0 hours to charge 100% state of charge
Normal Charge mode under AC100V : 14.0 hours to charge 100% state of charge
・Basic driving manner is same as petrol powered “i”. No special technique is required.

1-1 Components layouts
Main components for EV are set at under floor of body.
It enables to accommodate 1 driver and 3 passengers as same as Petrol powered “ i “.

Combination meter LED rear combination light

LED Headlight Charging system

Selector lever panel Main battery [Lithium –ion ] Motor & transmission

On board
battery charger
Motor ＆
Control DC / DC converter
Unit [OBC]
[MCU]

Petrol Engine Electrical motor
Heater unit
Fuel tank Main Battery
[ Petrol powered “ i ” ] [i-MiEV]

４
