EV System

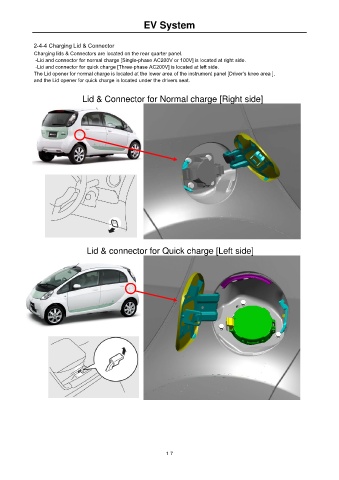

2-4-4 Charging Lid & Connector
Charging lids & Connectors are located on the rear quarter panel.
-Lid and connector for normal charge [Single-phase AC200V or 100V] is located at right side.
-Lid and connector for quick charge [Three-phase AC200V] is located at left side.
The Lid opener for normal charge is located at the lower area of the instrument panel [Driver’s knee area ],
and the Lid opener for quick charge is located under the drivers seat.
Lid & Connector for Normal charge [Right side]
Lid & connector for Quick charge [Left side]
