EV System

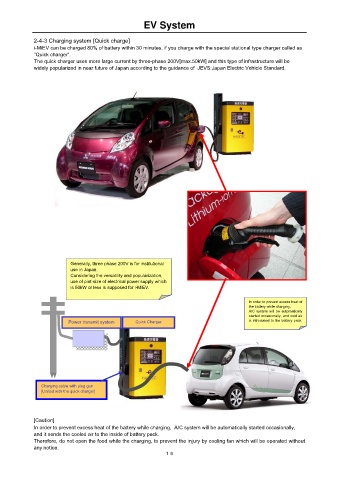

2-4-3 Charging system [Quick charge]
i-MiEV can be charged 80% of battery within 30 minutes, if you charge with the special stational type charger called as
“Quick charger”.
The quick charger uses more large current by three-phase 200V[max.50kW] and this type of infrastructure will be
widely popularized in near future of Japan according to the guidance of JEVS:Japan Electric Vehicle Standard.

Generally, three phase 200V is for institutional
use in Japan.
Considering the versatility and popularization,
use of pint-size of electrical power supply which
is 50kW or less is supposed for i-MiEV.

In order to prevent excess heat of
the battery while charging,
A/C system will be automatically
started occasionally, and cool air
Power transmit system Quick Charger is introduced to the battery pack.

Charging cable with plug gun
[United with the quick charger]

[Caution]
In order to prevent excess heat of the battery while charging, A/C system will be automatically started occasionally,
and it sends the cooled air to the inside of battery pack.
Therefore, do not open the food while the charging, to prevent the injury by cooling fan which will be operated without
any notice.
