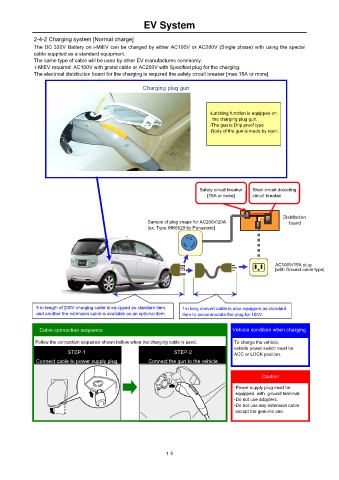

EV System

2-4-2 Charging system [Normal charge]
The DC 330V Battery on i-MiEV can be charged by either AC100V or AC200V (Single phase) with using the special
cable supplied as a standard equipment.
The same type of cable will be used by other EV manufactures commonly.
i-MiEV required AC100V with grand cable or AC200V with Specified plug for the charging.
The electrical distribution board for the charging is required the safety circuit breaker [max.15A or more]

Charging plug gun

-Latching function is equipped on
the charging plug gun.
-The gun is Drip proof type
-Body of the gun is made by resin.

Safety circuit breaker Short circuit detecting
[15A or more] circuit breaker

Distribution
Sample of plug shape for AC200V/20A board
[ex. Type WK6520 by Panasonic]

AC100V/15A plug
[with Ground cable type]

5 m length of 200V charging cable is equipped as standard item. 1m long convert cable is also equipped as standard
and another 5m extension cable is available as an optional item. item to accommodate the plug for 100V.

Cable connection sequence Vehicle condition when charging
Follow the connection sequence shown bellow when the charging cable is used. To charge the vehicle,
vehicle power switch must be
STEP-1 STEP-2 ACC or LOCK position.
Connect cable to power supply plug Connect the gun to the vehicle

Caution
-Power supply plug must be
equipped with ground terminal.
-Do not use adopters.
-Do not use any extension cable
except the genuine one.
