15-Jan-19 1:35:47 (h:min:s) 15-Jan-19
12:10:37.000 PM 19 min/Div 1:46:24.000 PM

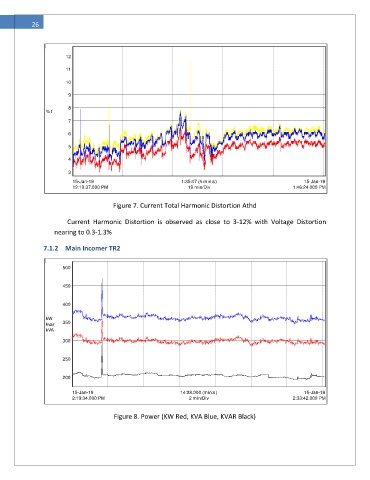

Figure 7. Current Total Harmonic Distortion Athd

Current Harmonic Distortion is observed as close to 3-12% with Voltage Distortion
nearing to 0.3-1.3%

7.1.2 Main Incomer TR2

500

450

400

kW
kvar 350
kVA
300

250

200

15-Jan-19 14:08.000 (min:s) 15-Jan-19
2:19:34.000 PM 2 min/Div 2:33:42.000 PM

Figure 8. Power (KW Red, KVA Blue, KVAR Black)
