34

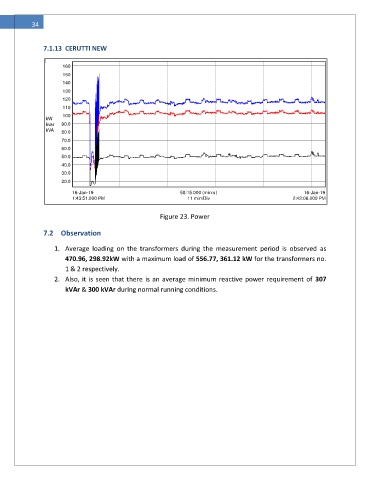

               7.1.13  CERUTTI NEW


                      160
                      150
                      140
                      130
                      120
                      110
                      100
                kW
                kvar  90.0
                kVA  80.0
                     70.0
                     60.0
                     50.0
                     40.0
                     30.0
                     20.0
                         16-Jan-19                           58:15.000 (min:s)                        16-Jan-19
                         1:43:51.000 PM                        11 min/Div                         2:42:06.000 PM


                                                      Figure 23. Power

               7.2  Observation


                   1.  Average  loading  on  the  transformers  during  the  measurement  period  is  observed  as
                       470.96, 298.92kW with a maximum load of 556.77, 361.12 kW for the transformers no.
                       1 & 2 respectively.
                   2.  Also, it is seen that there is an average minimum reactive power requirement of 307
                       kVAr & 300 kVAr during normal running conditions.
