P. 273

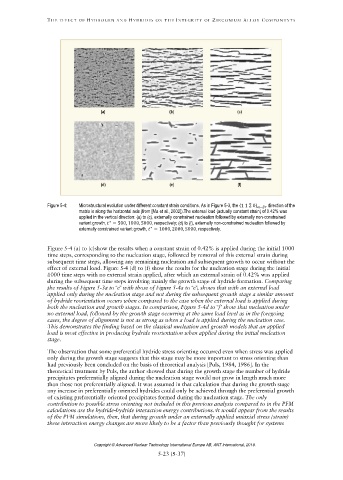

Figure 5-4:   Microstructural evolution under different constant strain conditions. As in Figure 5-3, the 〈1 1 2 ̅  0〉 α−      direction of the
                             matrix is along the horizontal axis (from [Ma et al., 2002]).The external load (actually constant strain) of 0.42% was
                             applied in the vertical direction: (a) to (c), externally constrained nucleation followed by externally non-constrained
                                        ∗
                             variant growth,    = 500, 1000, 5000, respectively; (d) to (f), externally non-constrained nucleation followed by
                                                       ∗
                             externally constrained variant growth,    = 1000, 2000, 5000, respectively.
