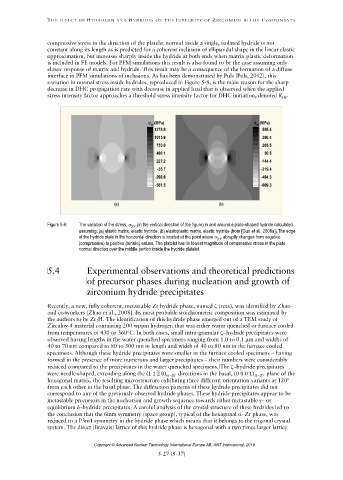

Figure 5-8: The variation of the stress, (in the vertical direction of the figure) in and around a plate-shaped hydride calculated
assuming: (a) elastic matrix, elastic hydride, (b) elastoplastic matrix, elastic hydride (from [Guo et al., 2008a]).The edge
of the hydride plate in the horizontal direction is located at the point where abruptly changes from negative
(compressive) to positive (tensile) values. The platelet has its lowest magnitude of compressive stress in the plate
normal direction over the middle portion inside the hydride platelet.
̅
〈1 1 2 0〉 α− (0 0 0 1) −
