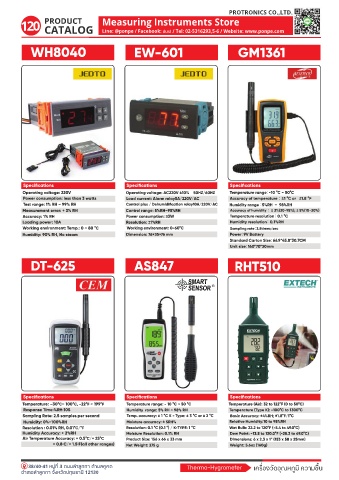

Page 129 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
120 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

WH8040 EW-601 GM1361

Specifications Specifications Specifications
Operating voltage: 220V Operating voltage: AC220V ±10% 50HZ/60HZ Temperature rangeɿ-10 °C ~ 50°C
Power consumption: less than 3 watts Load current: Alarm relay5A/220V/AC Accuracy of temperature ɿ ±1 °C or ±1.8 °F
Test range: 1% RH ~ 99% RH Control plus / Dehumidification relay10A/220V/AC Humidity range ɿ5%RH ~ 98%RH
Measurement error: + 3% RH Control range: 5%RH~95%RH Accuracy of humidity ɿ ± 3%(30-95%); ± 5%(10-30%)
Accuracy: 1% RH Power consumption: ≤3W Temperature resolutionɿ 0.1 °C
Loading power: 10A Resolution: ±1%RH Humidity resolutionɿ 0.1%RH
Working environment: Temp.: 0 ~ 80 °C Working environment: 0-60°C Sampling rateɿ2.5times/sec
Humidity: 90% RH, No steam Dimension: 76×35×76 mm Powerɿ9V Battery
Standard Carton Sizeɿ66.9*45.8*30.7CM
Unit sizeɿ160*70*30mm

DT-625 AS847 RHT510

Specifications Specifications Specifications
Temperature: –30°C~ 100°C, -22°F ~ 199°F Temperature range: - 10 °C ~ 50 °C Temperature (Air): 32 to 122°F (0 to 50°C)
Response Time:%RH:10S Humidity range: 5% RH ~ 98% RH Temperature (Type K): -100°C to 1300°C
Sampling Rate: 2.5 samples per second Temp. accuracy: ± 1 °C K - Type: ± 3 °C or ± 2 °C Basic Accuracy: ±4%RH; ±1.8°F/1°C
Humidity: 0%~100%RH Moisture accuracy: ± 5RH% Relative Humidity:10 to 95%RH
Resolution : 0.01% RH, 0.01°C/°F Resolution: 0.1 °C (0.1 °) / K-TYPE: 1 °C Wet Bulb: 22.2 to 120°F (-5.4 to 49.0°C)
Humidity Accuracy: + 2%RH Moisture Resolution: 0.1% RH Dew Point: -13.5 to 120.0°F (-25.3 to 49.0°C)
Air Temperature Accuracy: + 0.5°C/+ 25°C Product Size: 156 x 66 x 33 mm Dimensions: 6 x 2.3 x 1" (153 x 58 x 25mm)
+ 0.8ºC/+ 1.5ºF(all other ranges) Net Weight: 275 g Weight: 5.6oz (160g)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดอุณหภูมิ ความชื้น
