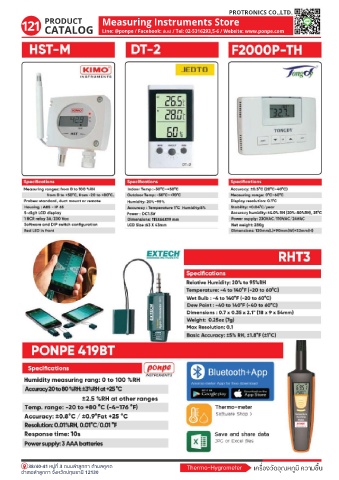

Page 130 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
121 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

HST-M DT-2 F2000P-TH

Specifications Specifications Specifications
Measuring ranges: from 0 to 100 %RH Indoor Temp :-30°C~+50°C Accuracy: ±0.5°C (20°C~40°C)
from 0 to +50°C, from -20 to +80°C. Outdoor Temp: -50°C~+70°C Measuring range: 0°C~60°C
Probes: standard, duct mount or remote Humidity: 20%~99% Display resolution: 0.1°C
Housing : ABS - IP 65 Accuracy : Temperature 1°C Humidity:5% Stability: <0.04°C/year
5-digit LCD display Power : DC1.5V Accuracy humidity: ±4.0% RH (20%-80%RH), 25°C
1 RCR relay 3A/230 Vac Dimensions: 115X64X19 mm Power supply: 230VAC/110VAC/24VAC
Software and DIP switch configuration LCD Size :63 X 43mm Net weight: 280g
Red LED in front Dimensions: 120mm(L)×90mm(W)×32mm(H)

RHT3

Specifications
Relative Humidity: 20% to 95%RH
Temperature: -4 to 140°F (-20 to 60°C)
Wet Bulb : -4 to 140°F (-20 to 60°C)
Dew Point : -40 to 140°F (-40 to 60°C)
Dimensions : 0.7 x 0.35 x 2.1" (18 x 9 x 54mm)
Weight: 0.25oz (7g)
Max Resolution: 0.1
Basic Accuracy: ±5% RH, ±1.8°F (±1°C)

RH390

Specifications

Humidity: 0 to 100%RH
Temperature (Internal): -22 to 199°F (-30 to 100°C)
Basic Accuracy: ±2%RH, ±1.8°F/1°C
Max. Resolution: 0.1%RH, 0.1°F/°C
Dewpoint: -22 to 199°F (-30 to 100°C)
Wet Bulb: 32 to 176 °F (0 to 80°C)
Dimensions: 7.8x1.7x1.3" (200x45x33mm)
Weight: 7 oz (200g)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดอุณหภูมิ ความชื้น
