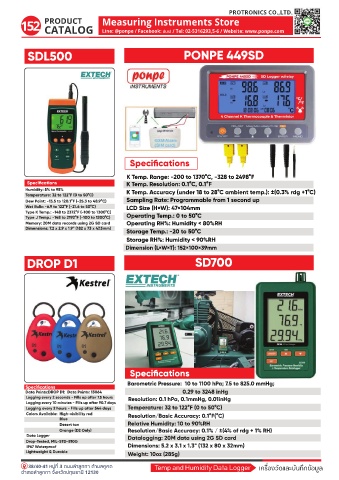

Page 161 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
152 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

SDL500 PONPE 449SD

Specifications

K Temp. Range: -200 to 1370°C, -328 to 2498°F
Specifications K Temp. Resolution: 0.1°C, 0.1°F
Humidity: 5% to 95% K Temp. Accuracy (under 18 to 28°C ambient temp.): ±(0.3% rdg +1°C)
Temperature: 32 to 122°F (0 to 50°C)
Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C) Sampling Rate: Programmable from 1 second up
Wet Bulb: -6.9 to 122°F (-21.6 to 50°C) LCD Size (H×W): 47×104mm
Type K Temp.: -148 to 2372°F (-100 to 1300°C)
Type J Temp.: -148 to 2192°F (-100 to 1200°C) Operating Temp.: 0 to 50°C
Memory: 20M data records using 2G SD card Operating RH%: Humidity < 80%RH
Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Storage Temp.: -20 to 50°C
Storage RH%: Humidity < 90%RH
Dimension (L×W×T): 152×100×39mm
DROP D1 SD700

Specifications

Barometric Pressure: 10 to 1100 hPa; 7.5 to 825.0 mmHg;
Specifications
Data Points:DROP D1: Data Points: 13064 0.29 to 3248 inHg
Logging every 2 seconds - Fills up after 7.5 hours Resolution: 0.1 hPa, 0.1mmHg, 0.01inHg
Logging every 10 minutes - Fills up after 90.7 days
Logging every 2 hours - Fills up after 544 days Temperature: 32 to 122°F (0 to 50°C)
Colors Available: High-visibility red Resolution/Basic Accuracy: 0.1°F(°C)
Blue
Desert tan Relative Humidity: 10 to 90%RH
Orange (D2 Only) Resolution/Basic Accuracy: 0.1% / ±(4% of rdg + 1% RH)
Data Logger Datalogging: 20M data using 2G SD card
Drop-Tested, MIL-STD-810G
IP67 Waterproof Dimensions: 5.2 x 3.1 x 1.3" (132 x 80 x 32mm)
Lightweight & Durable
Weight: 10oz (285g)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดและบันทึกข�อมูล
