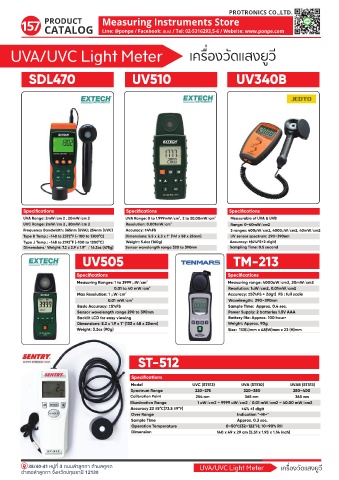

Page 166 - PONPE Catalogs 2022

PROTRONICS CO.,LTD.
157 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

UVA/UVC Light Meter เครื่องวัดแสงยูวี

SDL470 UV510 UV340B

Specifications Specifications Specifications
UVA Range: 2mW/cm 2 , 20mW/cm 2 UVA Range: 0 to 1.999mW/cm², 2 to 20.00mW/cm² Measurable of UVA & UVB
UVC Range: 2mW/cm 2 , 20mW/cm 2 Resolution: 0.001mW/cm² Range: 0~40mW/cm2
Frequency Bandwidth: 365nm (UVA); 254nm (UVC) Accuracy: ±4%FS 3 ranges: 400 W/cm2, 4000 W/cm2, 40mW/cm2
Type K Temp.: -148 to 2372°F (-100 to 1300°C) Dimensions: 5.5 x 2.3 x 1" (141 x 58 x 25mm) UV sensor spectrum: 290~390nm
Type J Temp.: -148 to 2192°F (-100 to 1200°C) Weight: 5.6oz (160g) Accuracy: ±(4%FS+2 digit)
Dimensions/ Weight: 7.2 x 2.9 x 1.9" / 16.2oz (475g) Sensor wavelength range 320 to 390nm Sampling Time: 0.5 second
UV505 TM-213

Specifications Specifications
Measuring Ranges: 1 to 3999 W/cm² Measuring range: 4000uW/cm2, 20mW/cm2
0.01 to 40 mW/cm² Resolution: 1uW/cm2, 0.01mW/cm2
Max Resolution: 1 W/cm² Accuracy: ±5(%FS + 2dgt) FS : full scale
0.01 mW/cm² Wavelength: 290~390nm
Basic Accuracy: ±5%FS Sample Time: Approx. 0.4 sec.
Sensor wavelength range 290 to 390nm Power Supply: 2 batteries 1.5V AAA
Backlit LCD for easy viewing Battery life: Approx. 100 hourr
Dimensions: 5.2 x 1.9 x 1" (133 x 48 x 23mm) Weight: Approx. 90g
Weight: 3.2oz (90g) Size: 133(L)mm x 48(W)mm x 23 (H)mm

ST-512

Specifications
Model UVC (ST512) UVA (ST510) UVAB (ST513)
Spectrum Range 220~275 320~380 280~400
Calibration Point 254 nm 365 nm 365 nm
Illumination Range 1 uW/cm2 ~ 9999 uW/cm2 / 0.01 mW/cm2 ~ 40.00 mW/cm2
Accuracy 23 ±5°C(73.5 ±9°F) ±4% ±1 digit
Over Range Indication "-HI-"
Sample Time Approx. 0.3 sec.
Operation Temperature 0~50°C(32~122°F); 10~90% RH
Dimension 140 x 49 x 29 cm (5.51 x 1.93 x 1.14 inch)

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130 เครื่องวัดแสงยูวี
