Page 109 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.
106

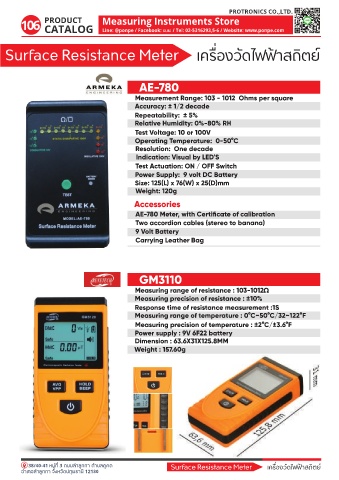

Surface Resistance Meter
38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com
เครื่องวัดไฟฟ�าสถิตย�
AE-780
Measurement Range: 103 - 1012 Ohms per square
Accuracy: ± 1/2 decade
Repeatability: ± 5%
Relative Humidity: 0%-80% RH
Test Voltage: 10 or 100V
Operating Temperature: 0-50°C
Resolution: One decade
Indication: Visual by LED'S
Test Actuation: ON / OFF Switch
Power Supply: 9 volt DC Battery
Size: 125(L) x 76(W) x 25(D)mm
Weight: 120g
Accessories
AE-780 Meter, with Certificate of calibration
Two accordion cables (stereo to banana)
9 Volt Battery
Carrying Leather Bag
GM3110
Measuring range of resistance : 103-1012
Measuring precision of resistance : ±10%
Response time of resistance measurement :1S
Measuring range of temperature : 0°C~50°C/32~122°F
Measuring precision of temperature : ±2°C/±3.6°F
Power supply : 9V 6F22 battery
Dimension : 63.6X31X125.8MM
Weight : 157.60g
เครื่องวัดไฟฟ�าสถิตย�
